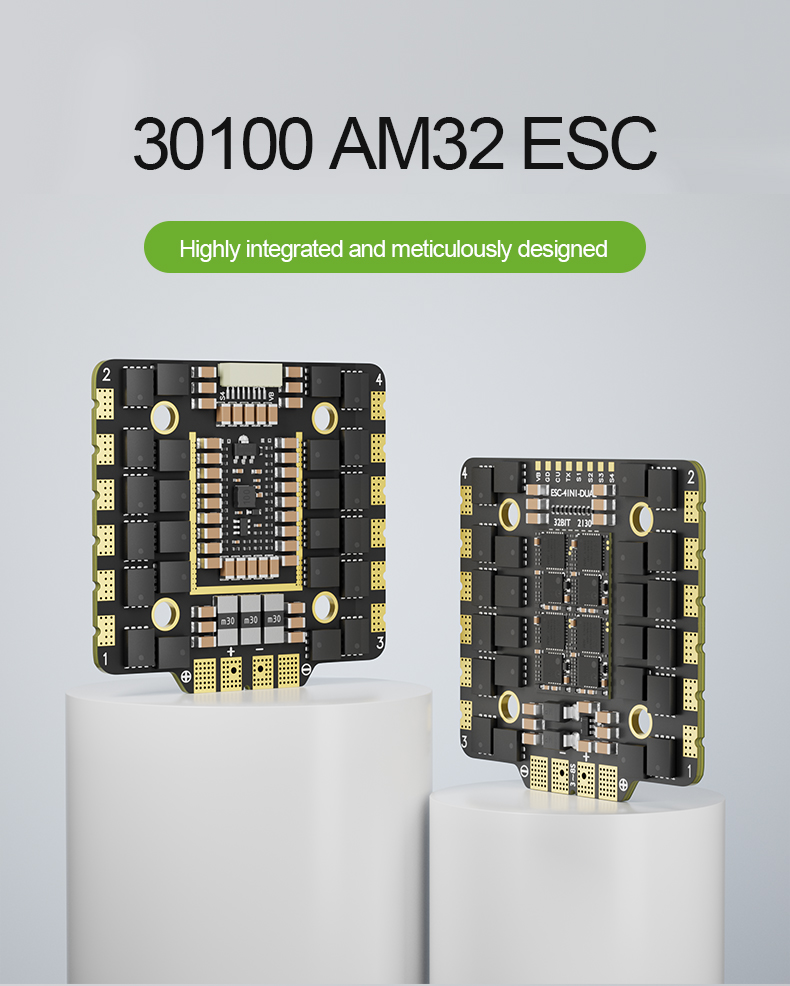

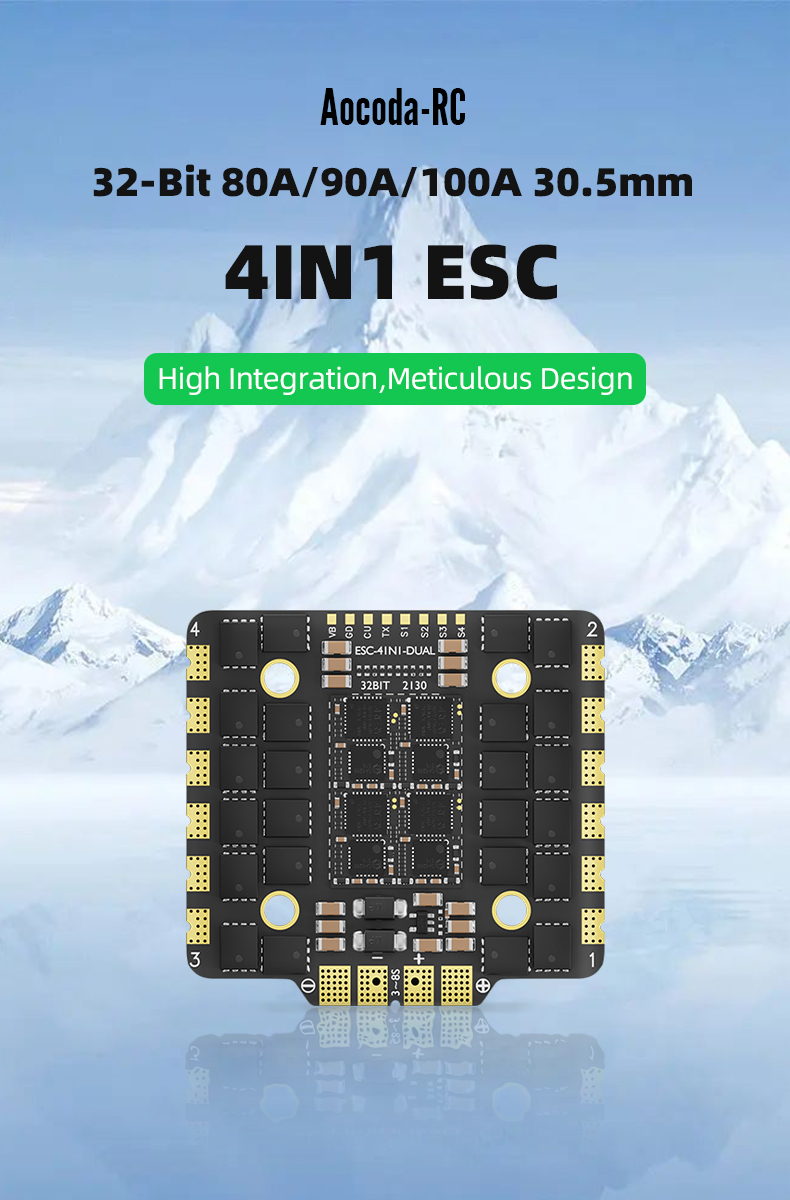

Aocoda-RC 3080/90/100 AM32 32Bit 80A/90A/100A 3-8S 4-IN-1 ESC

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Brand: Aocoda-RC
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}

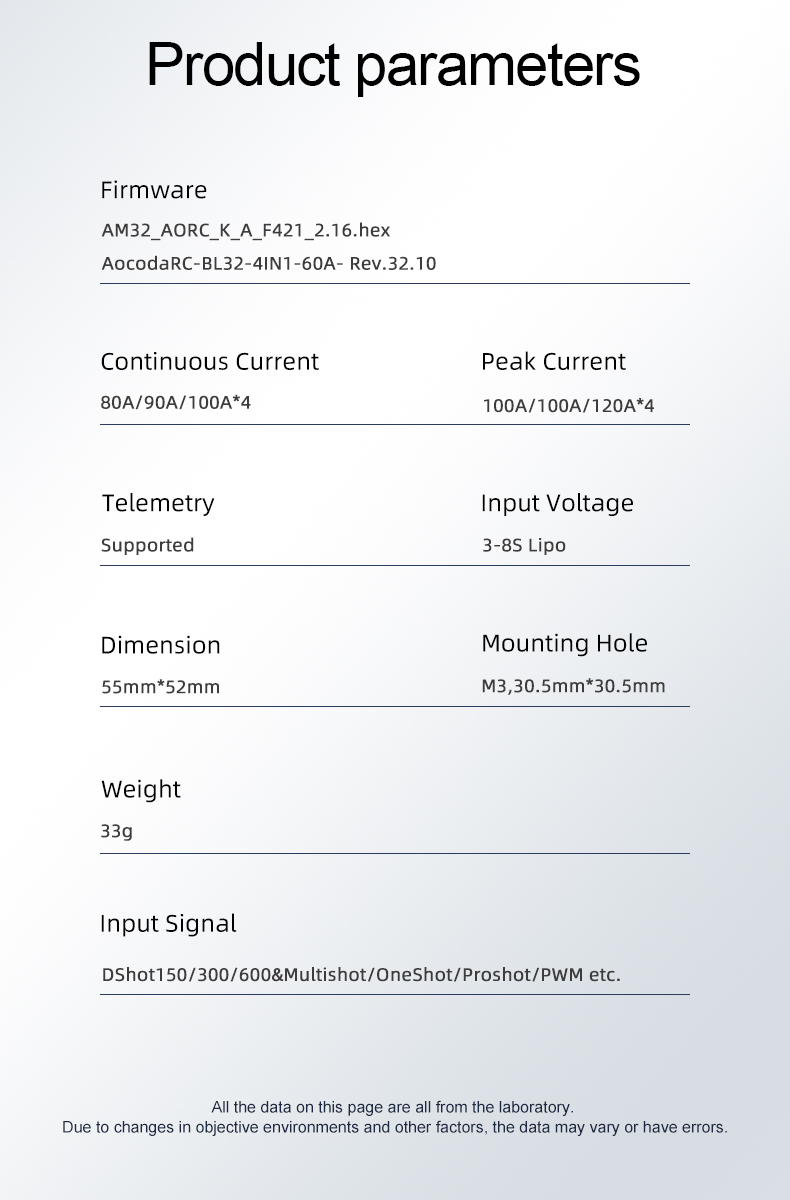

Specifications

  • MCU:
  • PWM frequency:
  • Continuous Current: 80A/90A/100A*4
  • Peak Current: 100A/100A/120A*4
  • Input Voltage: DC 9V~40V (3~8S Lipo)
  • Galvanometer: supported
  • BEC output: No
  • Temperature: No
  • Telemetry: supported
  • Current Scaling: 70
  • Working Temperature: -20℃~+55℃
  • Working Humidity: 20~95%
  • Storage Temperature: -20℃~+70℃



Features

  • Firmware: AM32_AORC_K_A_F421_2.16.hex
                     AocodaRC-BL32-4IN1-60A-Rev.32.10
  • ESC Programming: Supported
  • Web Parameter Adjustment:
  • Input Signal: DShot150/300/600&Multishot/oneShot/Proshot/PWM etc.
  • Motor Rotation:
  • Driving Frequency Setting:



Physical

  • Dimensions: 44.5mm*40.5mm
  • Mounting Hole: M3,30.5mm*30.5mm
  • Weight: 33g

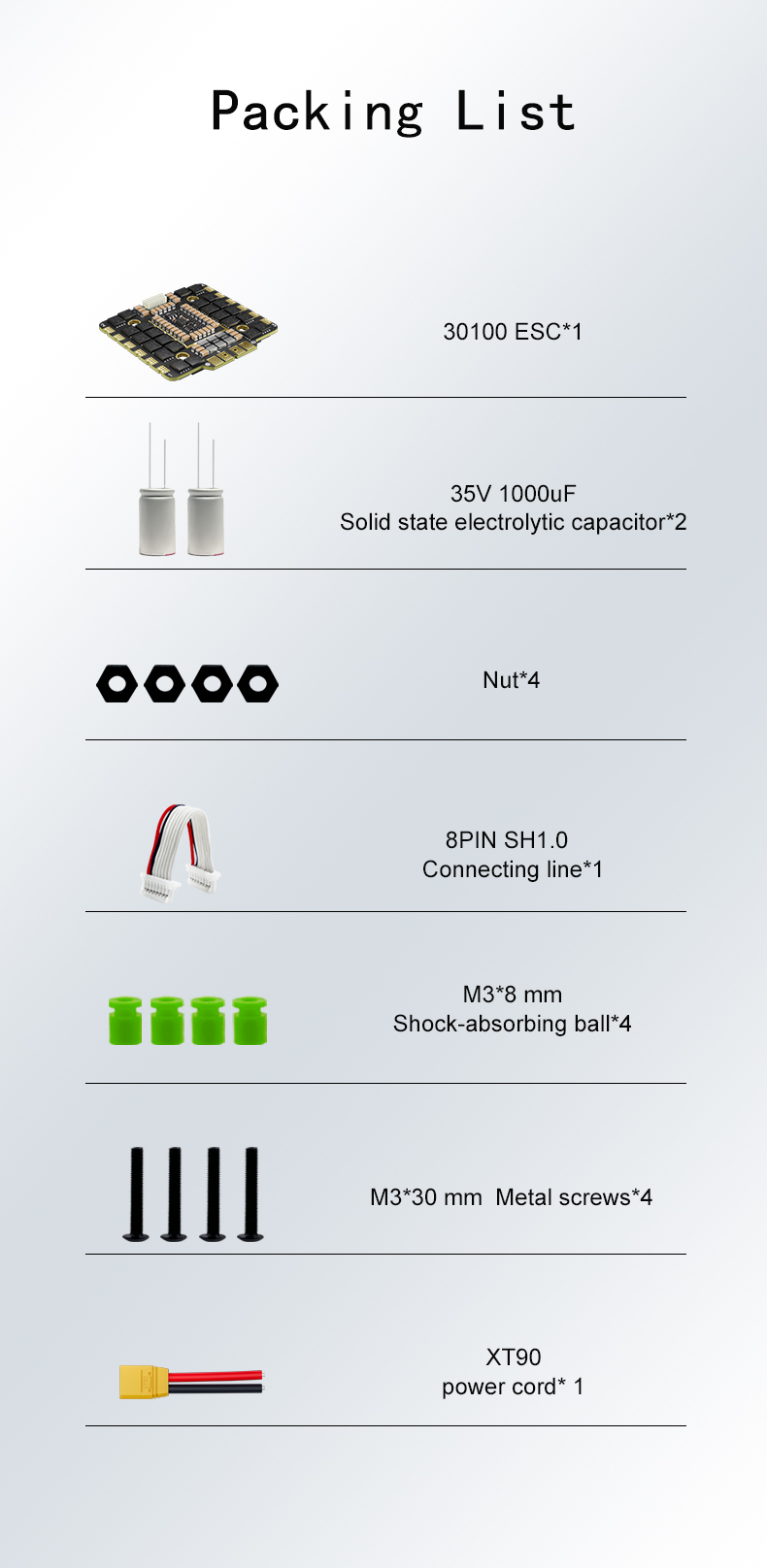

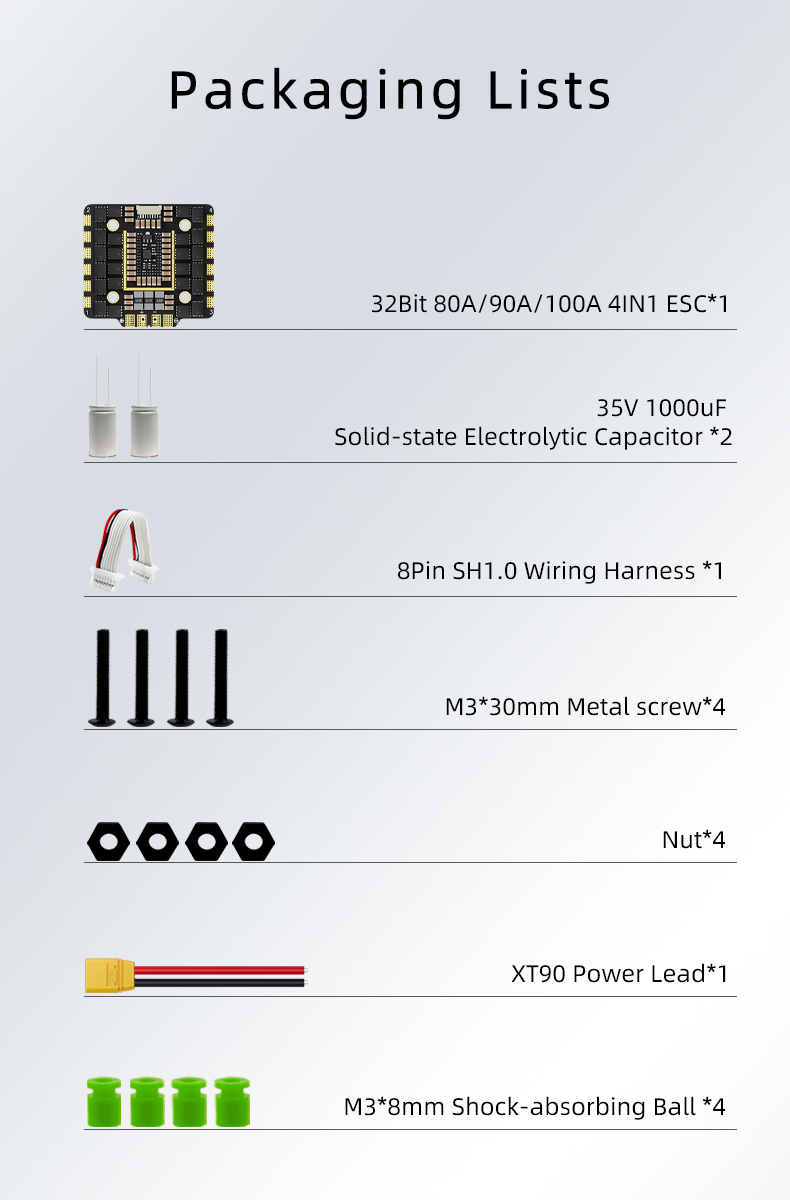

Including

  • 32Bit 80A/90A/100A 4IN1 ESC*1
  • 35V 1000uF Solid-state Electrolytic Capacitor *2
  • 8Pin SH1.0 Wiring Harness *1
  • M3*30mm Metalscrew*4
  • Nut*4
  • XT90 Power Lead*1
  • M3*8mm Shock-absorbing Ball*4





Regarding technical issues

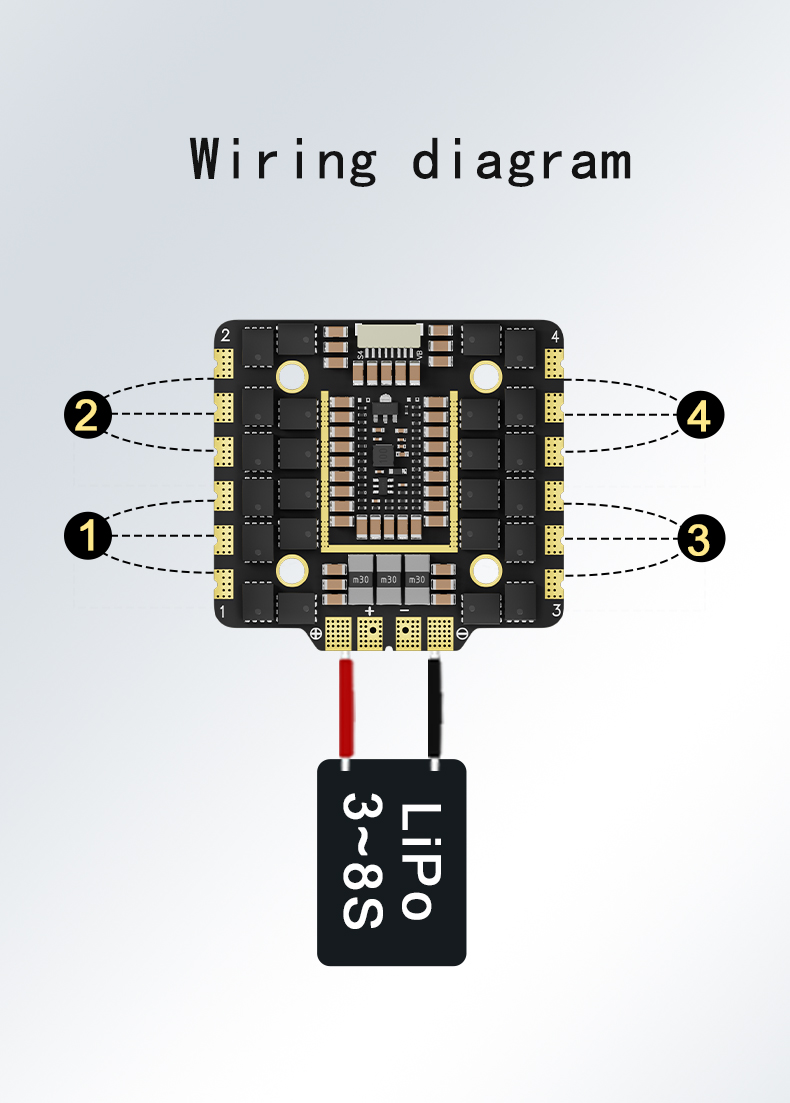

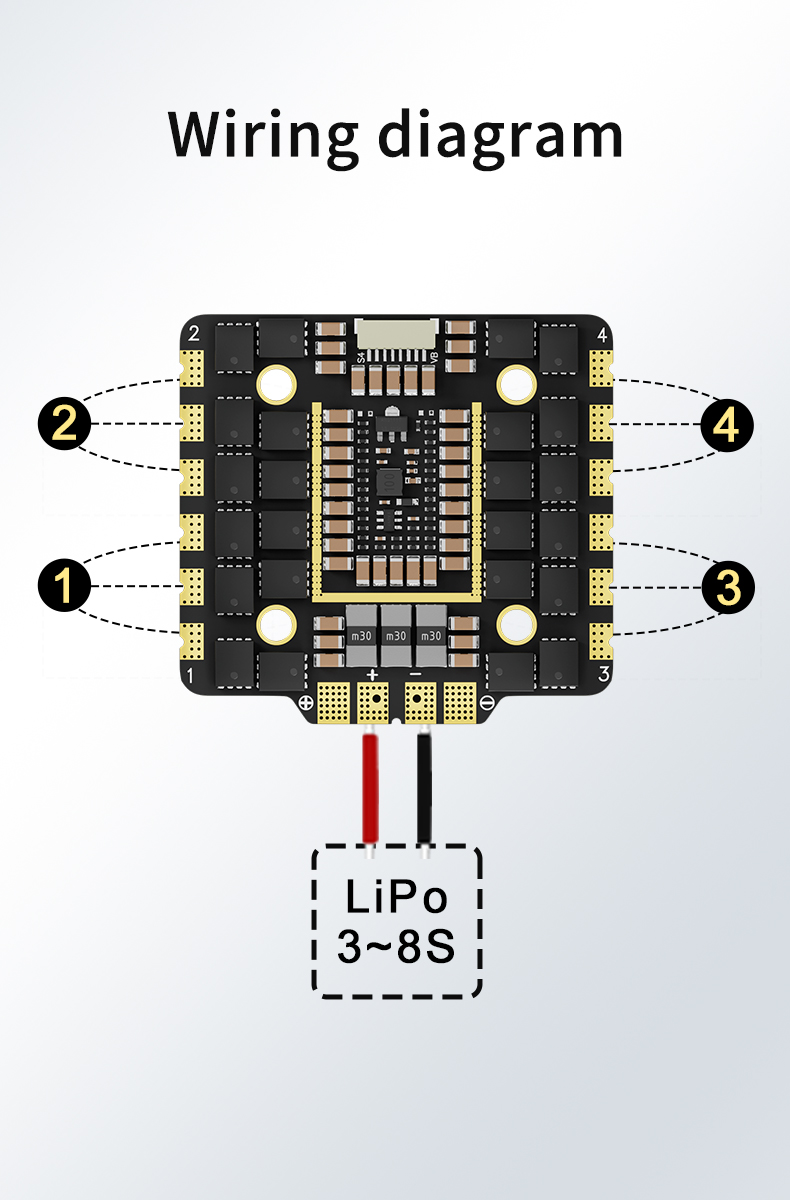

Product Manual (including Layout、Wiring diagram and Purchase channels)
