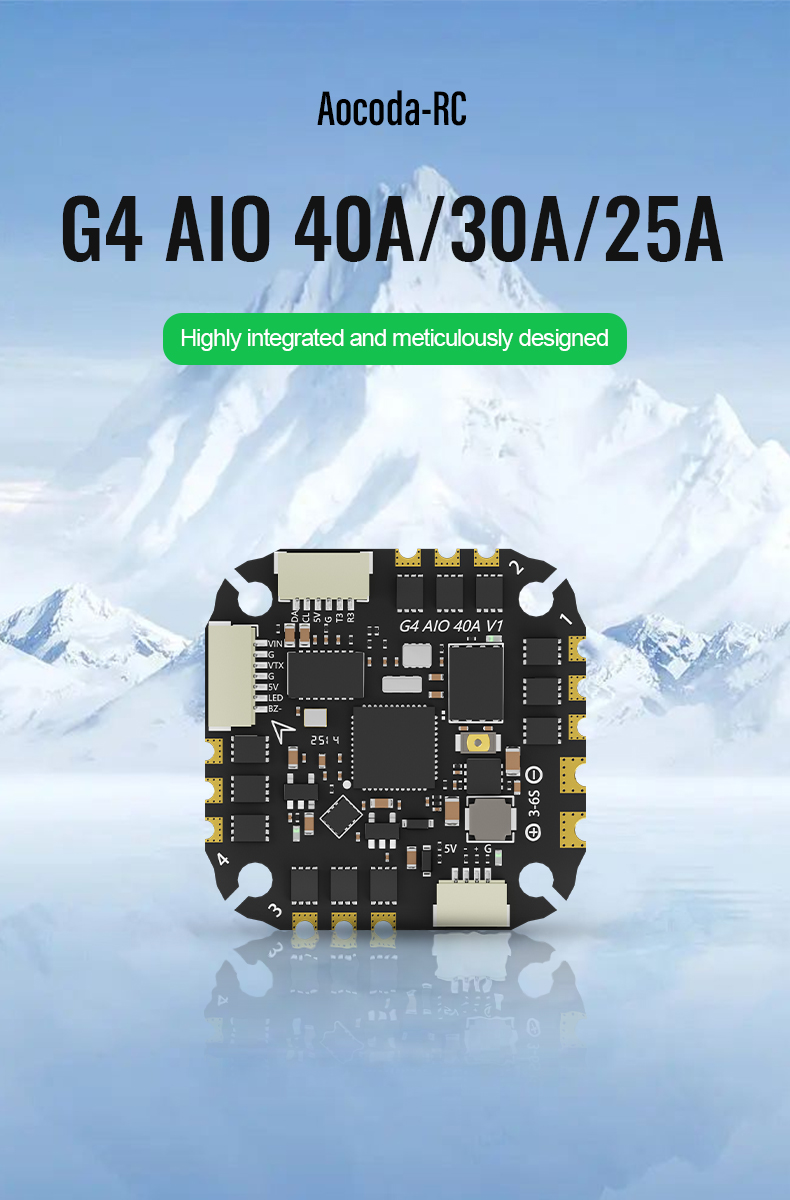

Aoocda-RC G4 AIO 40A/30A/25A 3-6S BLHeli_S/Bluejay for Racing Drone

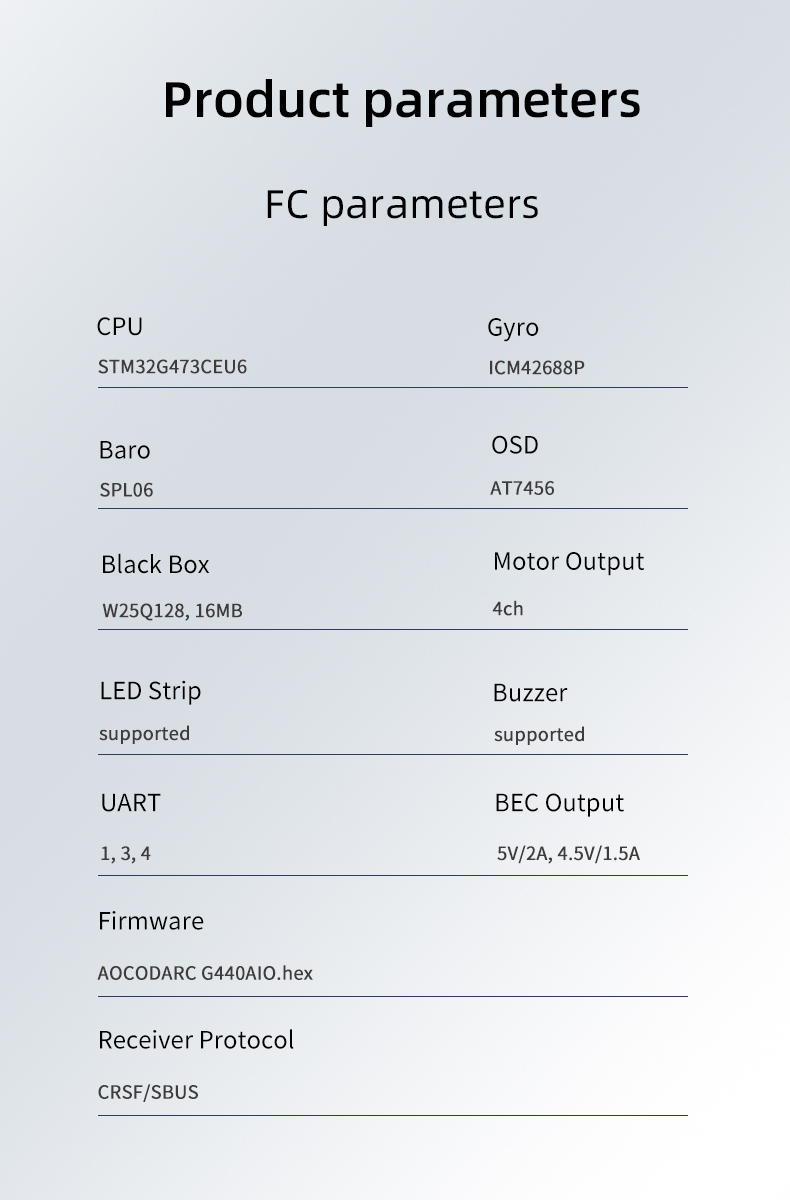

Specifications

• MCU: STM32G473CEU6, 170MHz
• Gyro: ICM42688P
• Barometer: SPL06
• OSD: AT7456
• Black Box: W25Q128, 16MB
• Motor Output: 4ch
• LED Strip: supported
• Buzzer: supported
• USB Port Type：Type-C
• UART: R1 T1 / R3 T3 / R4 T4
• BEC Output: 5V/2A, 4.5V/1.5A
• FC Firmware: AOCODARC G440AIO.hex
• Receiver: CRSF/SBUS

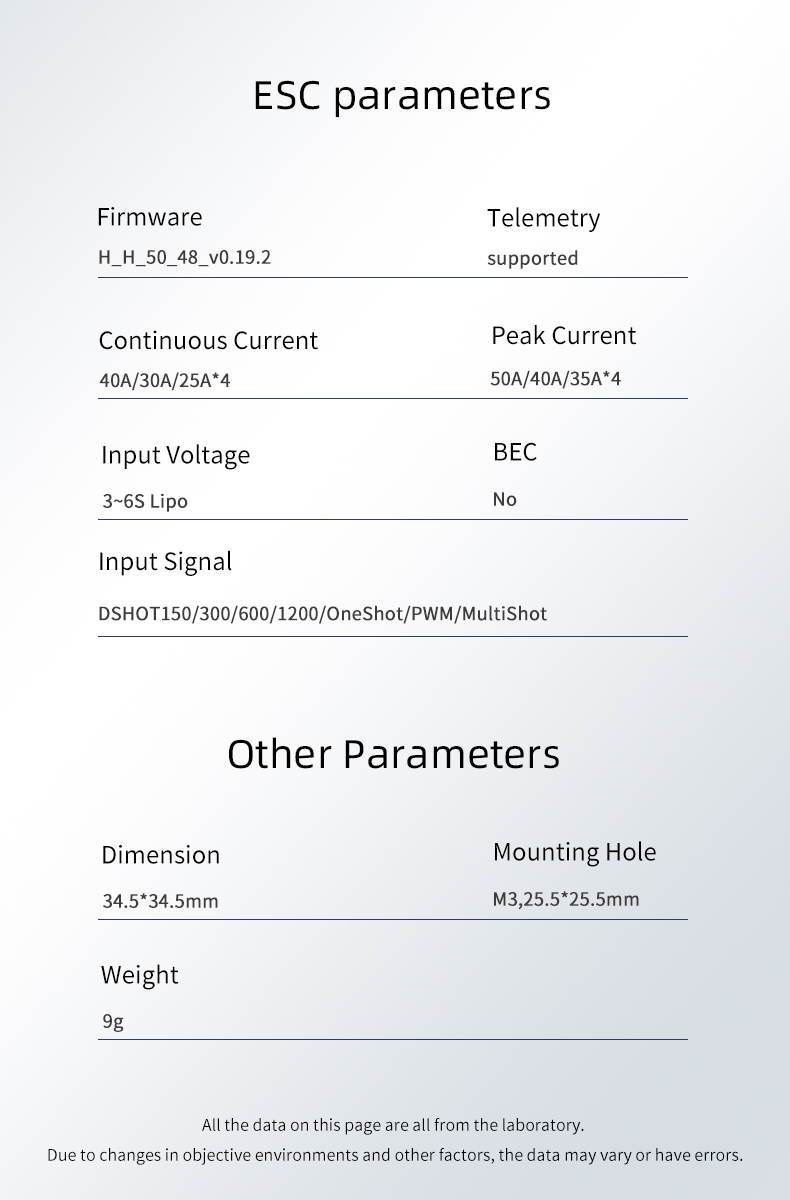

• Continuous Current: 40A*4/ 30A*4/ 25A*4
• Peak Current: 50A*4/ 40A*4/ 35A*4
• Input Voltage: 3-6S Lipo
• ESC Telemetry: supported
• Input Signal: DSHOT150/300/600/1200/OneShot/PWM/MultiShot
• ESC Fireware: H_H_50_48_v0.19.2

Physical

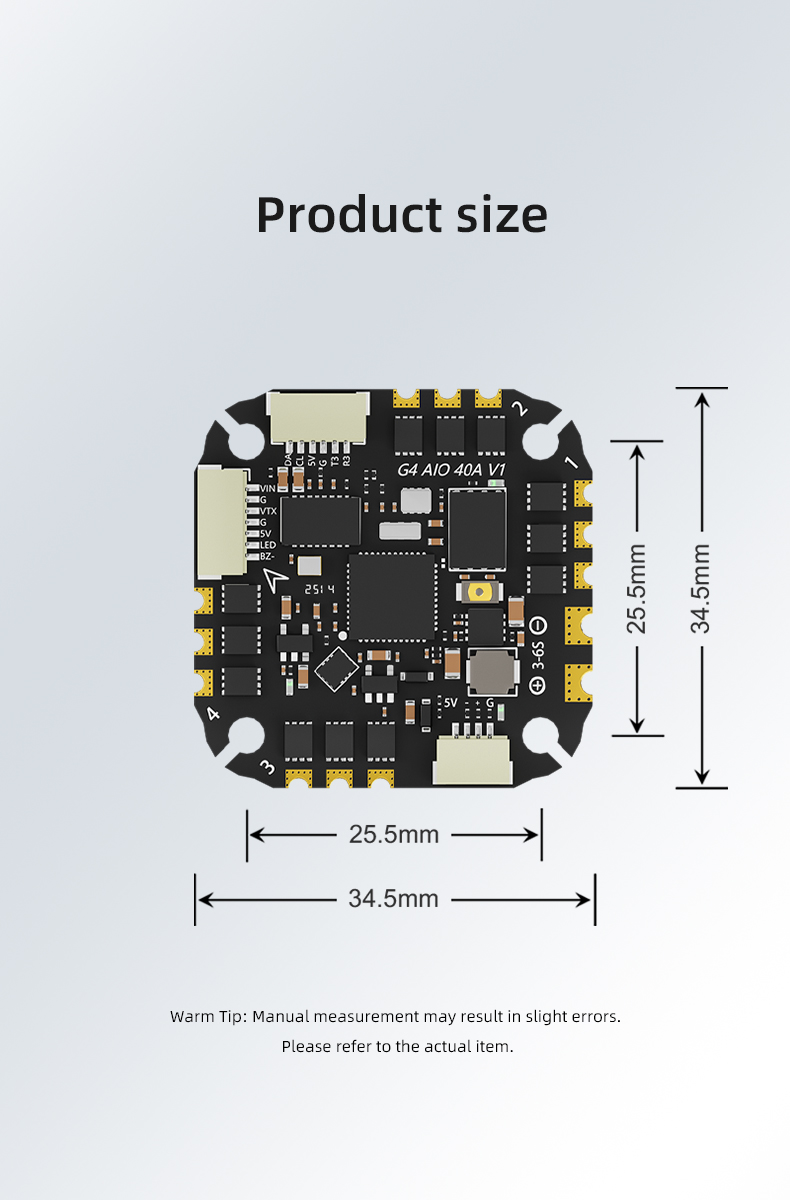

• Dimensions: 34.5mm*34.5mm
• Mounting Hole: M3 25.5mm*25.5mm
• Weight: 9g

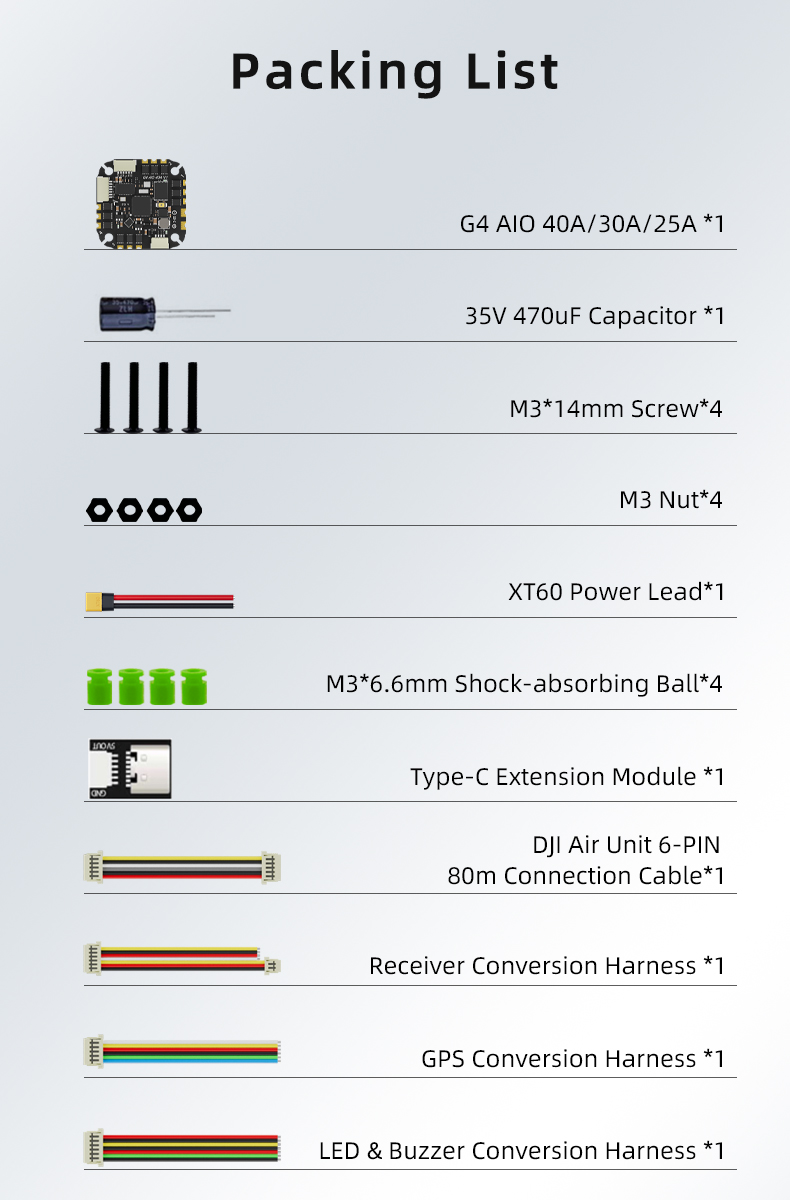

Including

• Aocoda-RC G4 AIO 40A/30A/25A ×1
• 35V 470uF Capacitor ×1
• M3*14mm Screw ×4
• M3 Nut ×4
• XT60 Power Lead*1
• M3*6.6mm Shock-absorbing Ball ×4
• Type-C Extension Module ×1
• DJI Air Unit 6-PIN 80m Connection Cable ×1
• Receiver Conversion Harness ×1
• GPS Conversion Harness ×1
• LED & Buzzer Conversion Harness ×1

Regarding technical issues

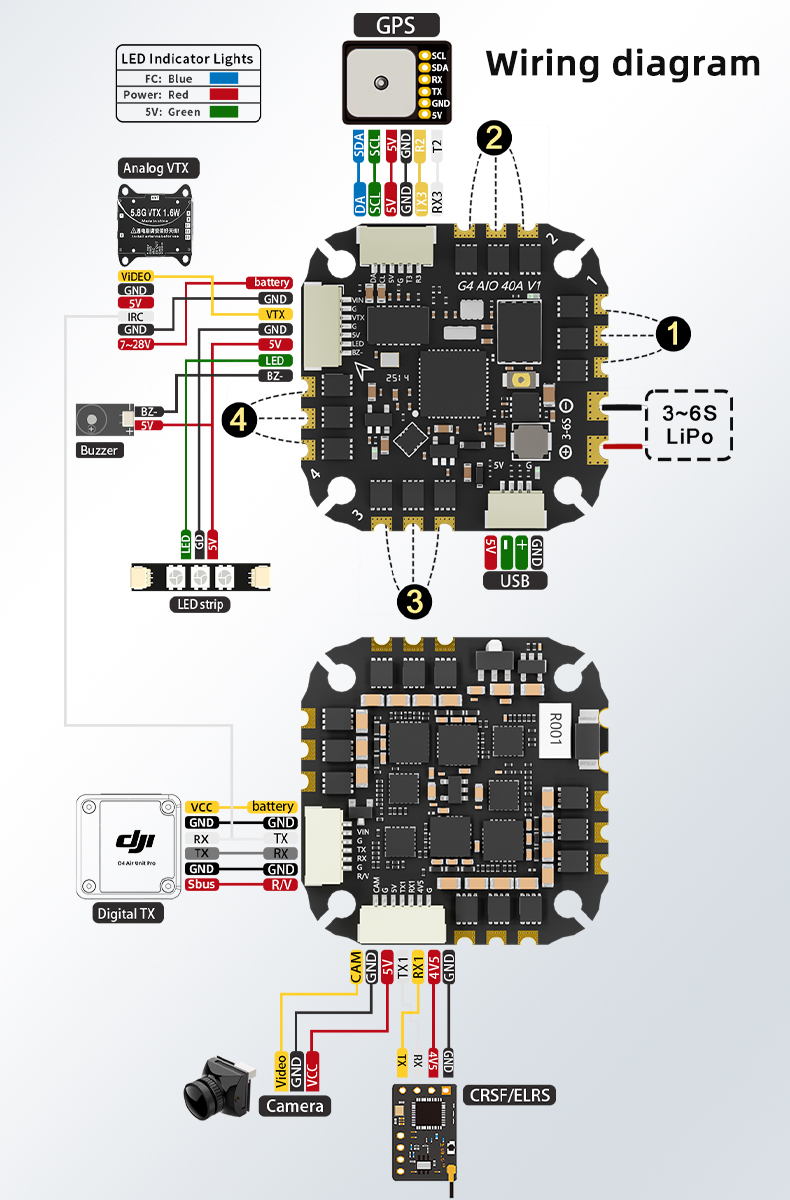

Product Manual (including Layout、Wiring diagram and Purchase channels)
