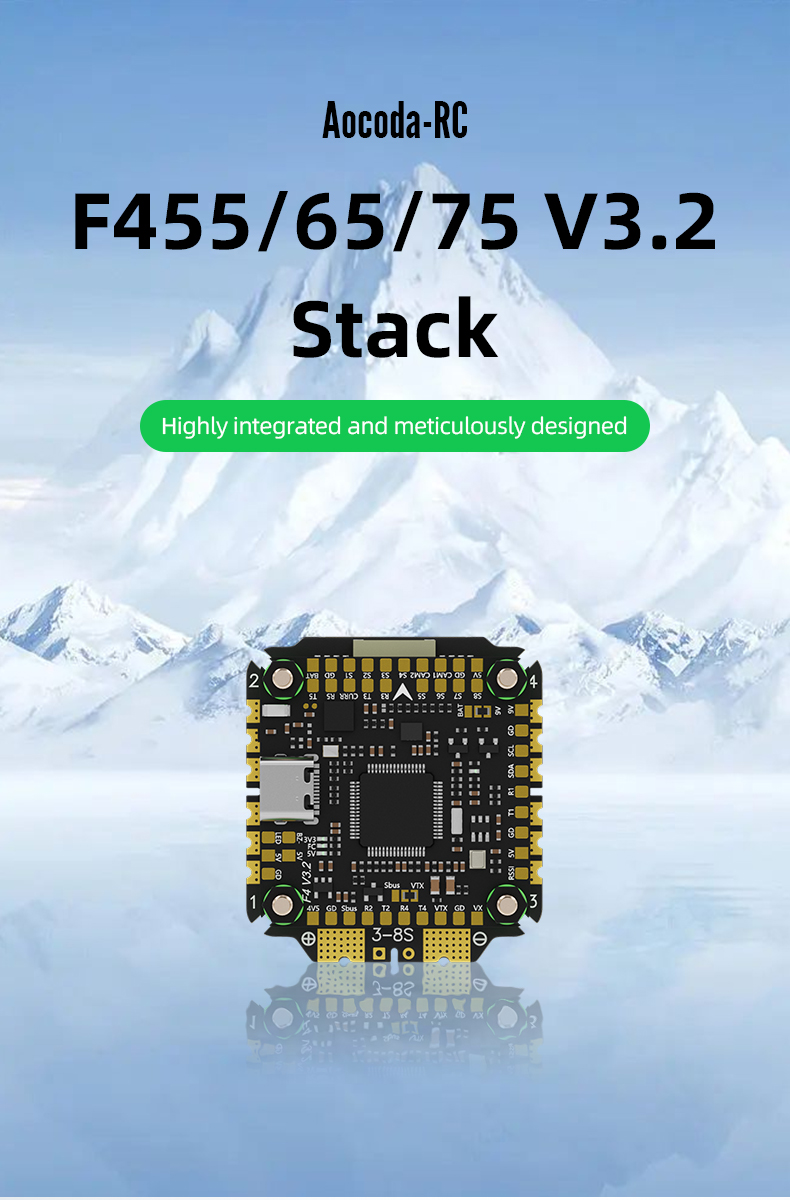

Aocoda-RC F455/65/75 V3.2 Stack F405 V3.2 FC+55A/65A/75A 32BIT 4in1 ESC 30x30mm for FPV Freestyle Drone

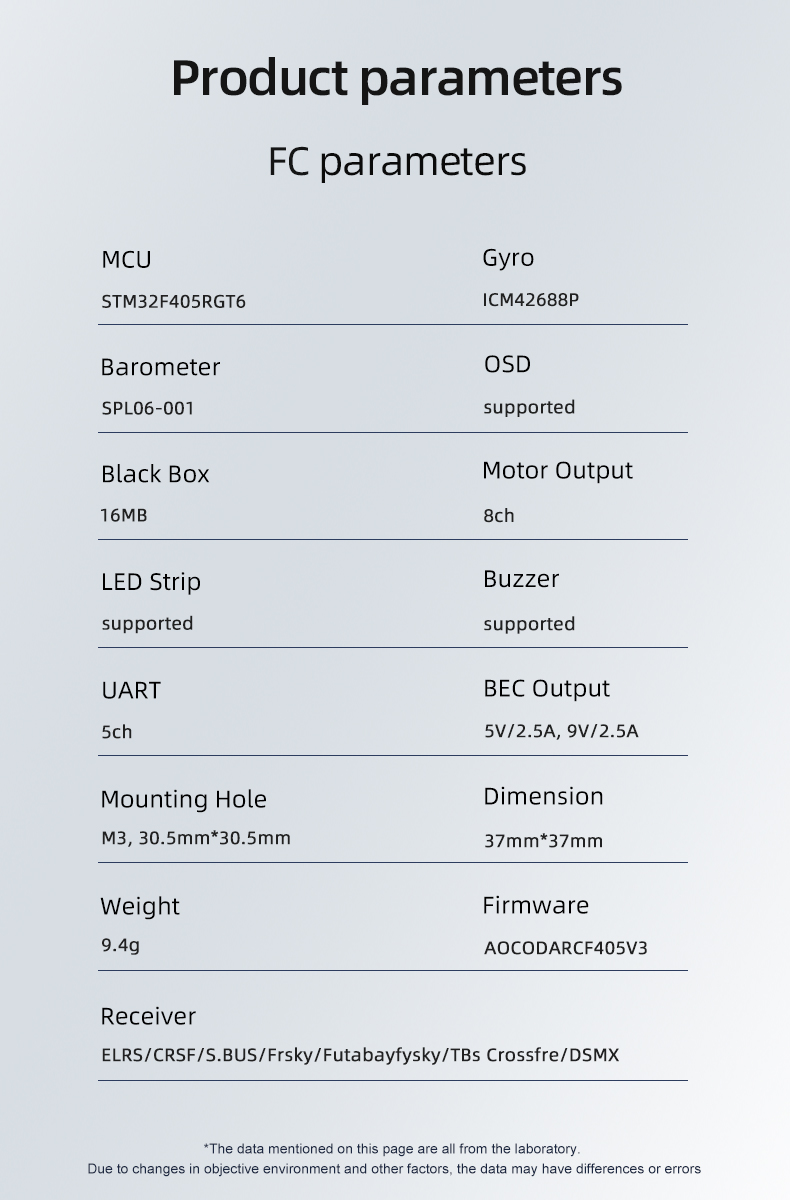

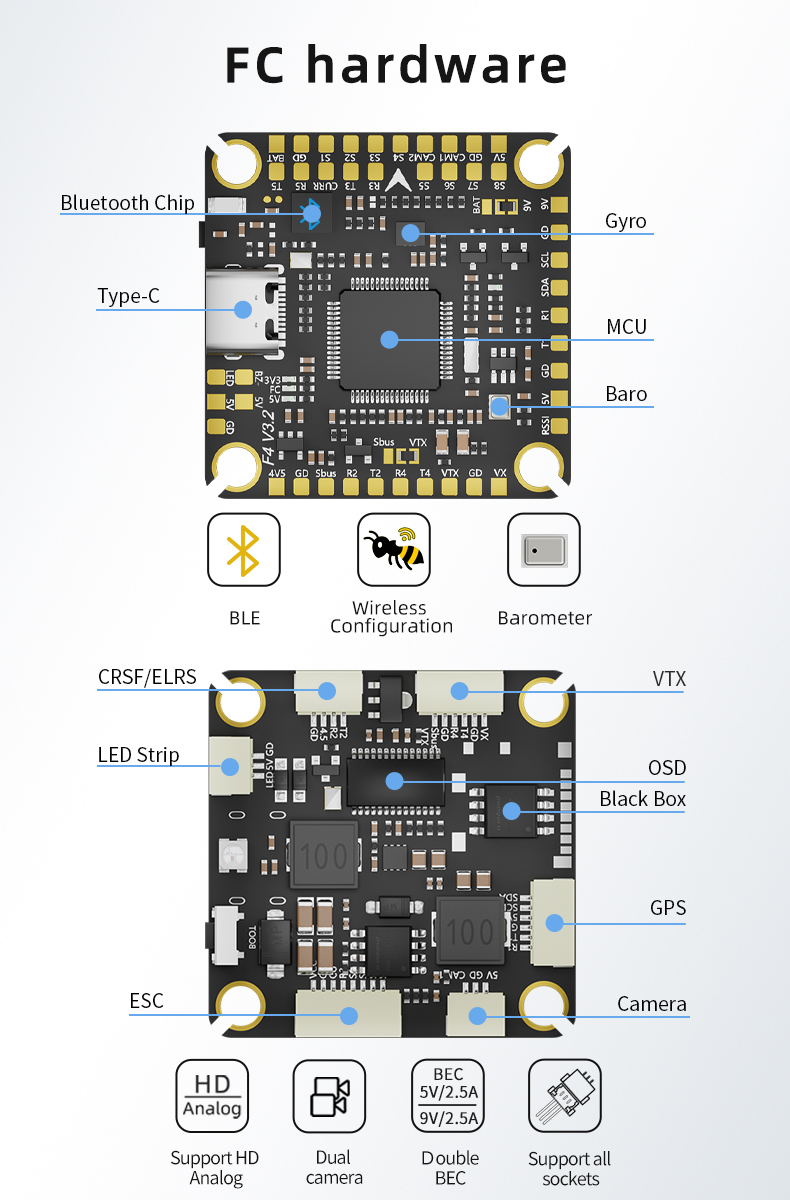

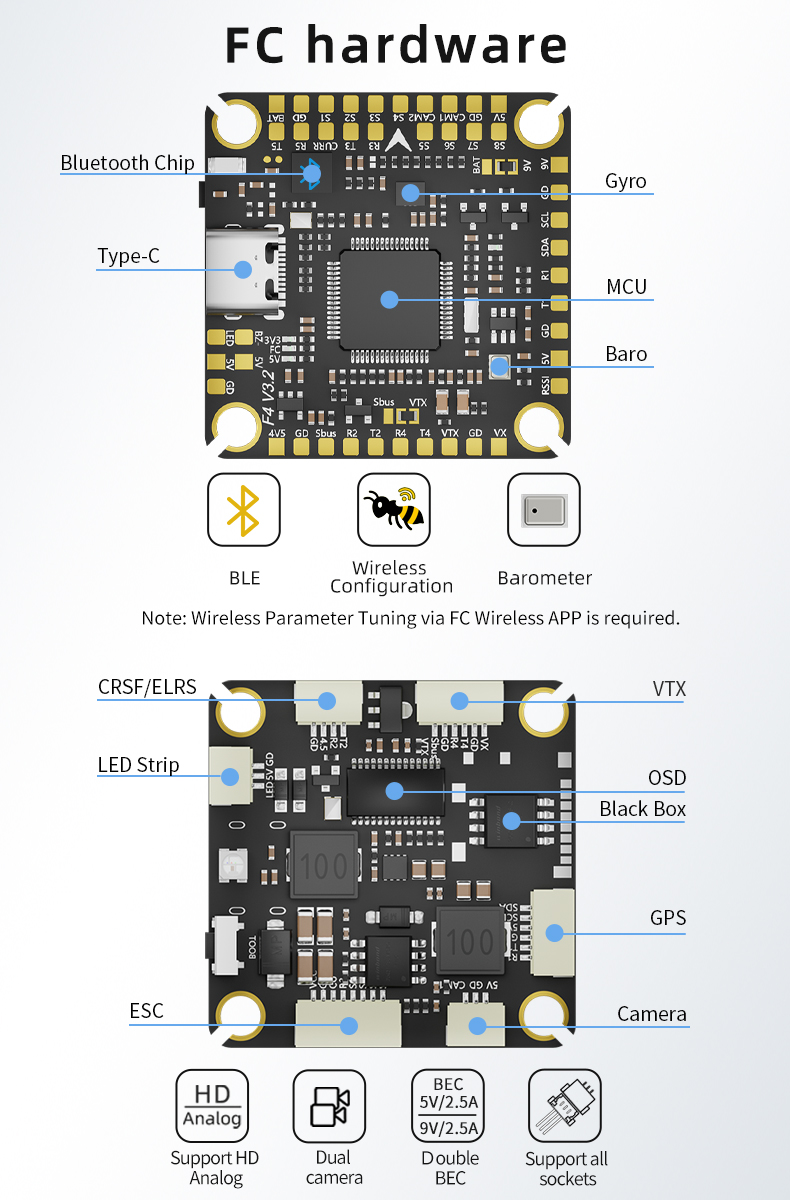

FC Specifications

• MCU: STM32F405RGT6, 168MHz, 1MB Flash
• Board V3.0-ICM Version: IMU: ICM42688 (SPI1)
• Board V3.0-MPU Version: IMU: MPU6888 (SPI1)

• Gyro: ICM42688P(SPI1)
• Baro: SPL06-001(I2C1)
• OSD: AT7456E(SPI2)
• Blackbox: 16MB(SPI3)
• Motor Output: 8ch
• 5x Uarts (1,2,3,4,5)
• 10x PWM outputs(including “LED strip” pad)
• 1x I2C
• 3x ADC (VBAT, RSSI, CURR)
• 3x LEDs for FC Status (Blue, Red) and 3V indicator(Red)
• Built-in inverter for SBUS input
• USB Type-C
• Dual camera input and free switching
• Receiver: ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX
• Firmware Name: AOCODARCF405V3
• Supported firmware: BetaFlight, INAV, ArduPilot(ChiBiOS)
• DJI FPV OSD is supported by any spare Uart
• BLE(Bluetooth Low Energy): supported
• Wireless Configuration via APP: supported (No physical BOOT button press required)

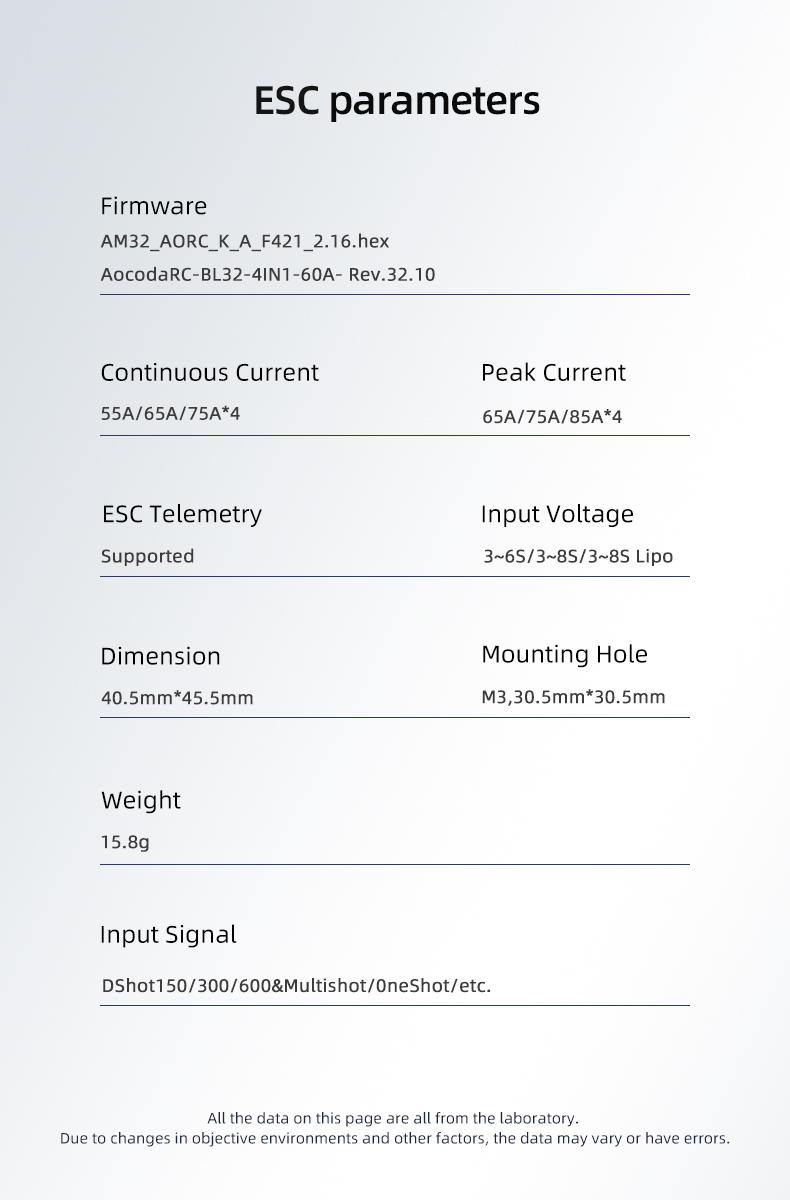

ESC Specifications

• Continuous Current: 55A/65A/75A*4
• Peak Current: 65A/75A/85A*4
• Input Voltage: 3~6S/3~8S/3~8S Lipo
• BEC output: No
• Temperature: No
• ESC Firmware: AM32_AORC_K_A_F421_2.16.hex or AocodaRC-BL32-4IN1-60A-Rev.32.10

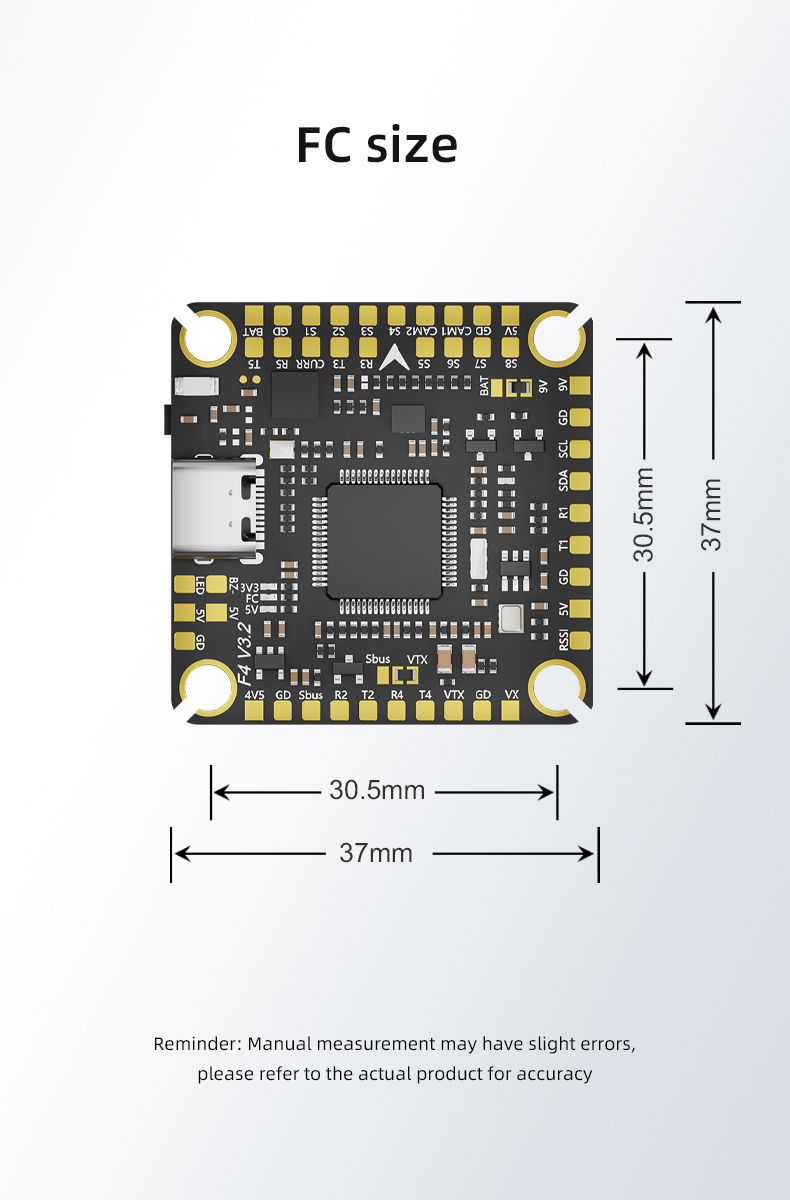

FC Physical

• Dimensions: 37mm*37mm
• Mounting Hole: M3 30.5mm*30.5mm
• Weight: 9.4g

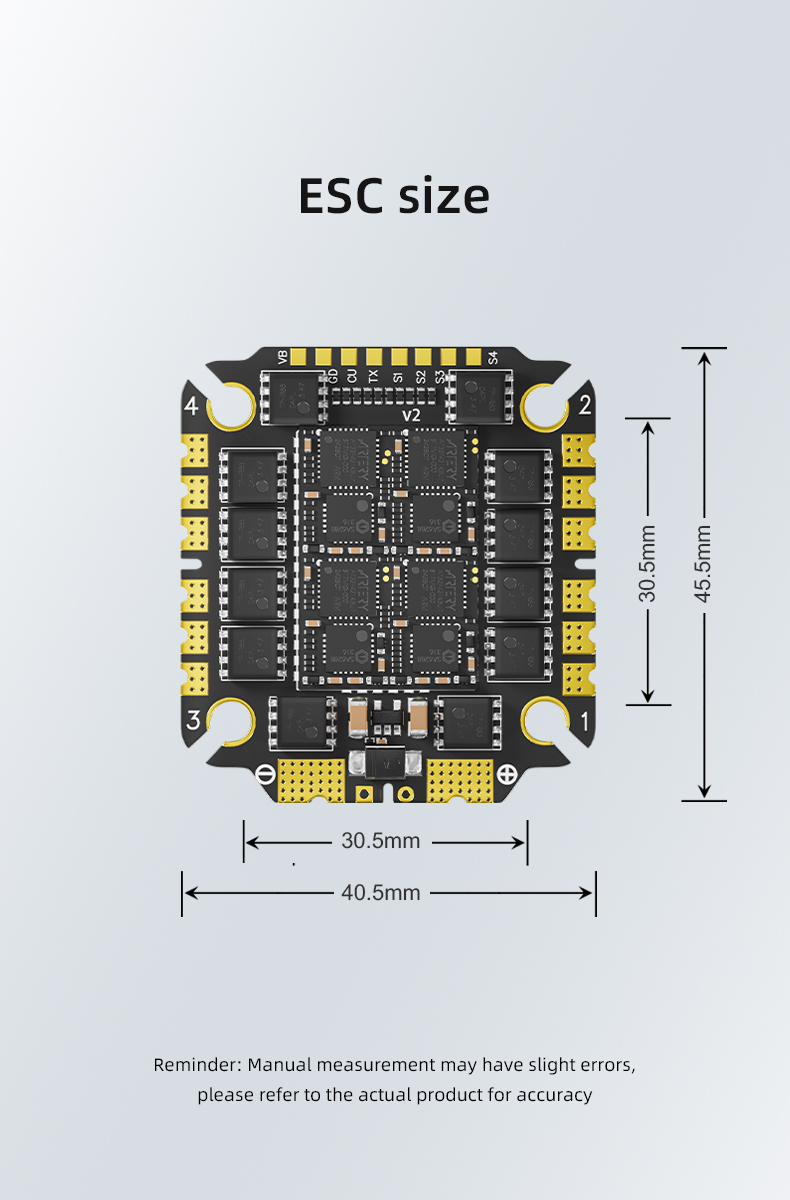

ESC Physical

• Dimensions: 44.5mm*40.5mm
• Mounting Hole: M3, 30.5mm*30.5mm
• Weight: 15.8g

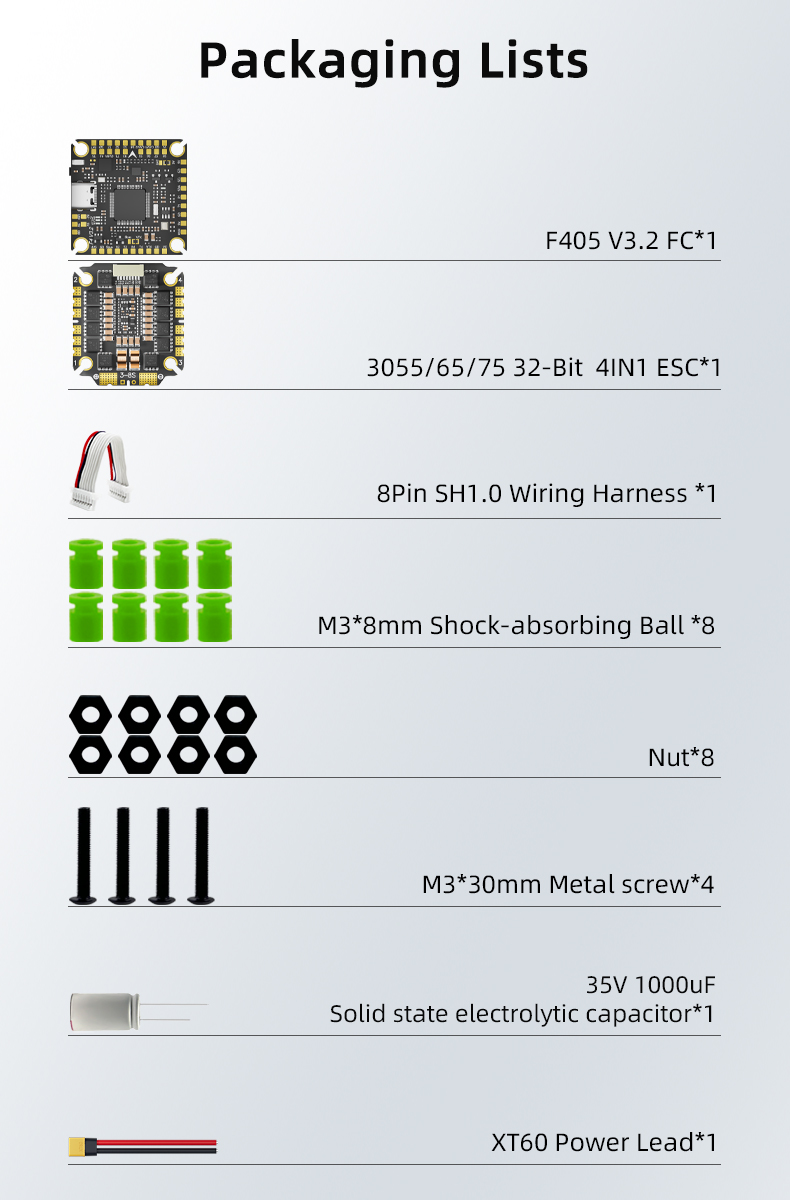

Including

• F405 V3.2 FC*1
• 3055/65/75 32BIT 4IN1 ESC*1
• 8Pin SH1.0 Wiring Harness*1
• M3*8mm Shock-absorbing Ball*8
• Nut*8
• M3*30mm Metal screw*4
• 35V 1000uF Solid-state Electrolytic capacitor*1
• XT60 Power Lead*1

Regarding technical issues

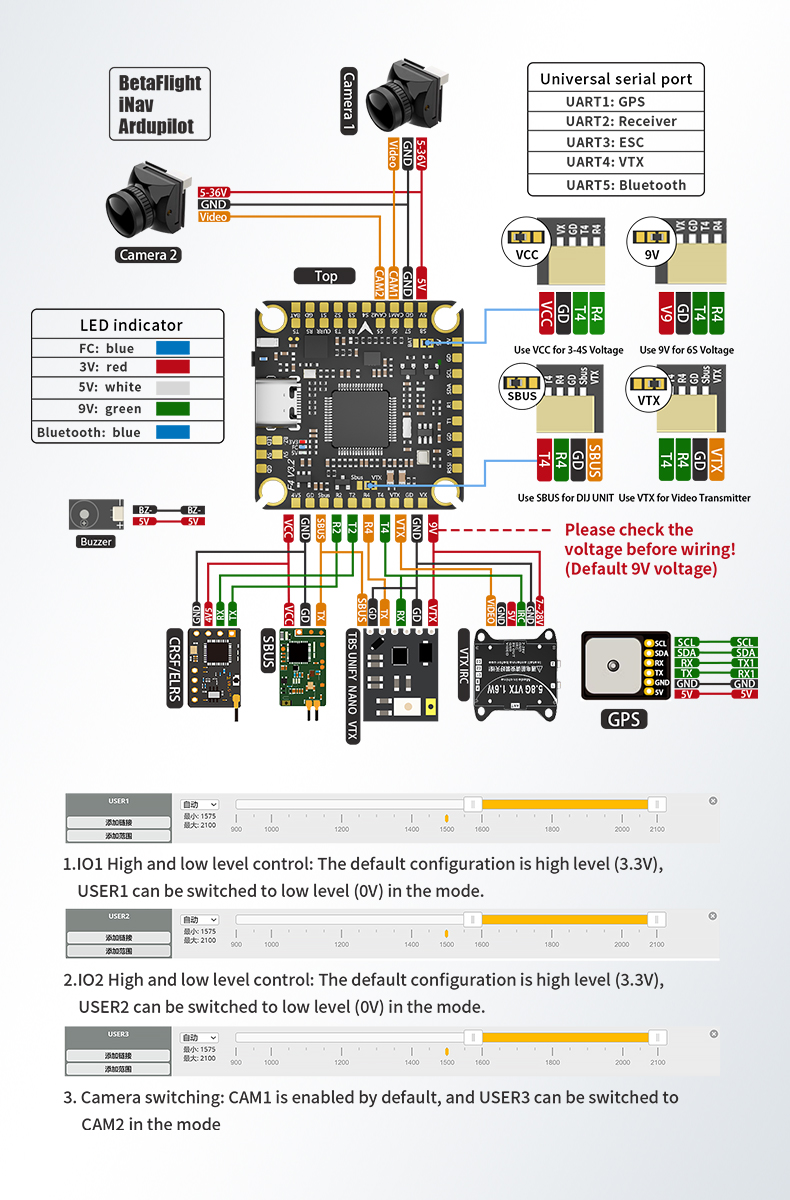

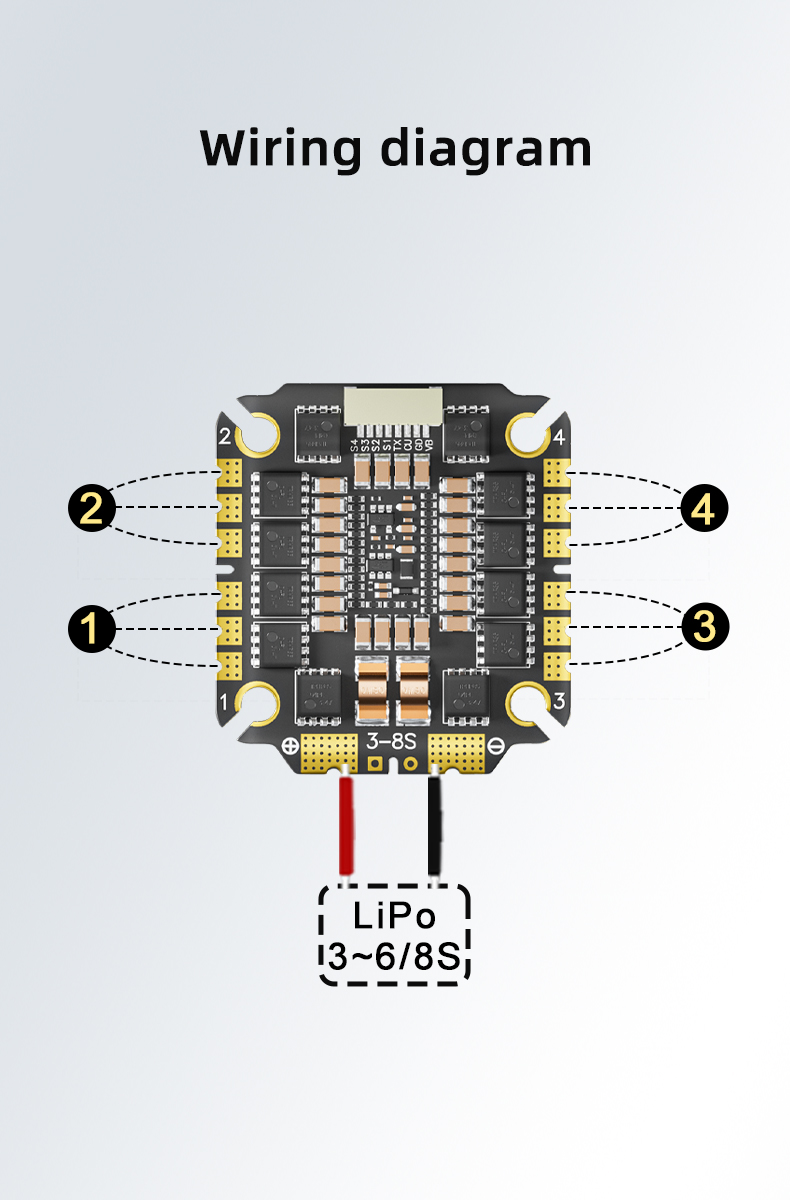

Product Manual (including Layout、Wiring diagram and Purchase channels)
