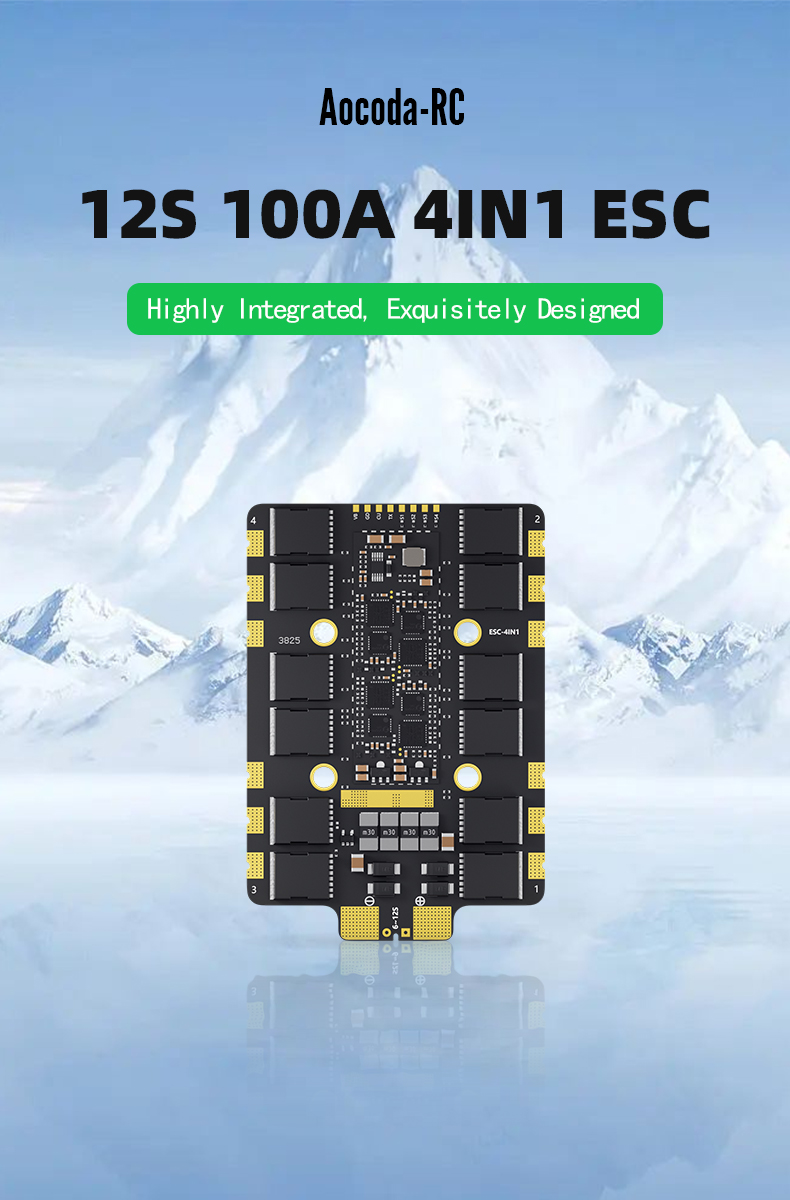

Aocoda-RC 12S 100A 4-IN-1 ESC 30X30mm for Racing Drone

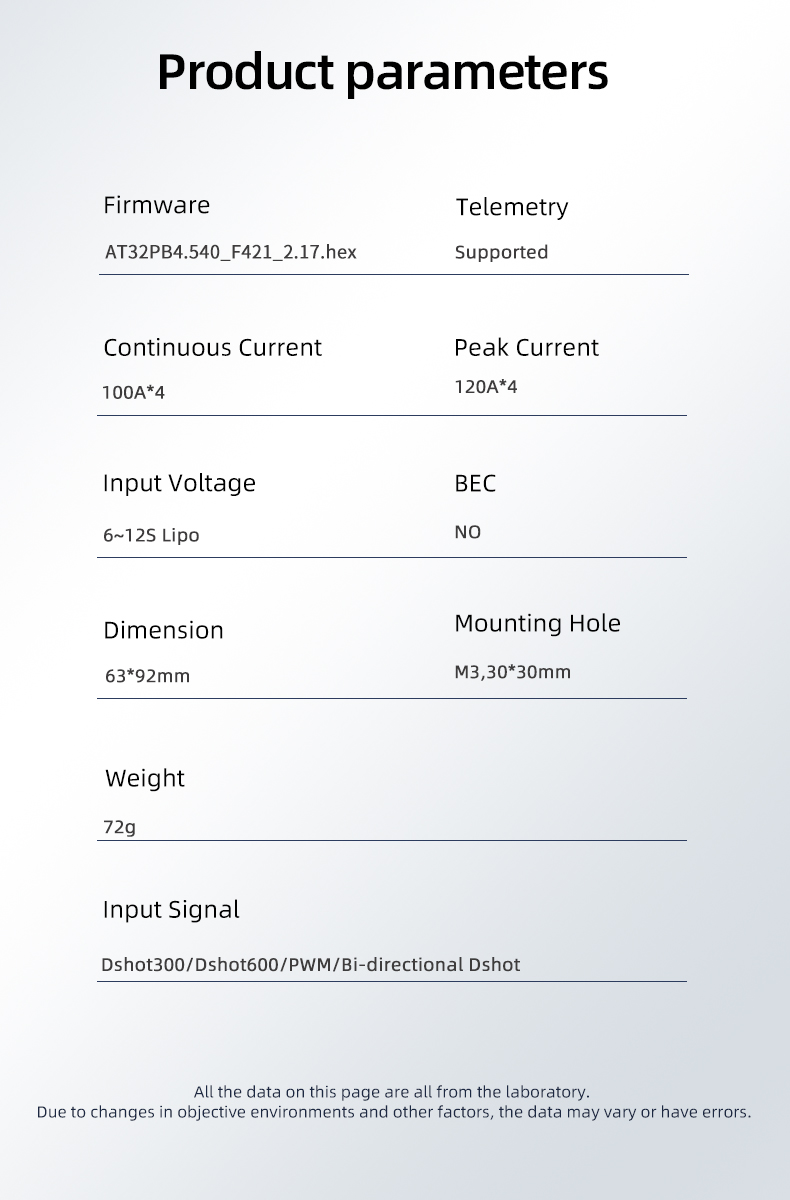

Specifications

• MCU: AT32F421K8U7, 120MHz
• MOSFET: SP010N02AGHTO
• Continuous Current: 100A*4
• Peak Current: 120A*4
• Input Voltage: DC 18V～90V (6~12S Lipo)
• Galvanometer: supported
• BEC: supported
• Temperature: No
• Telemetry: supported
• Current Scaling: 70
• Working Temperature: -20℃~+55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃~+70℃

Features

• Firmware: AT32PB4.540_F421_2.17.hex
• Input Signal: Dshot300/Dshot600/PWM/Bi‑directional Dshot

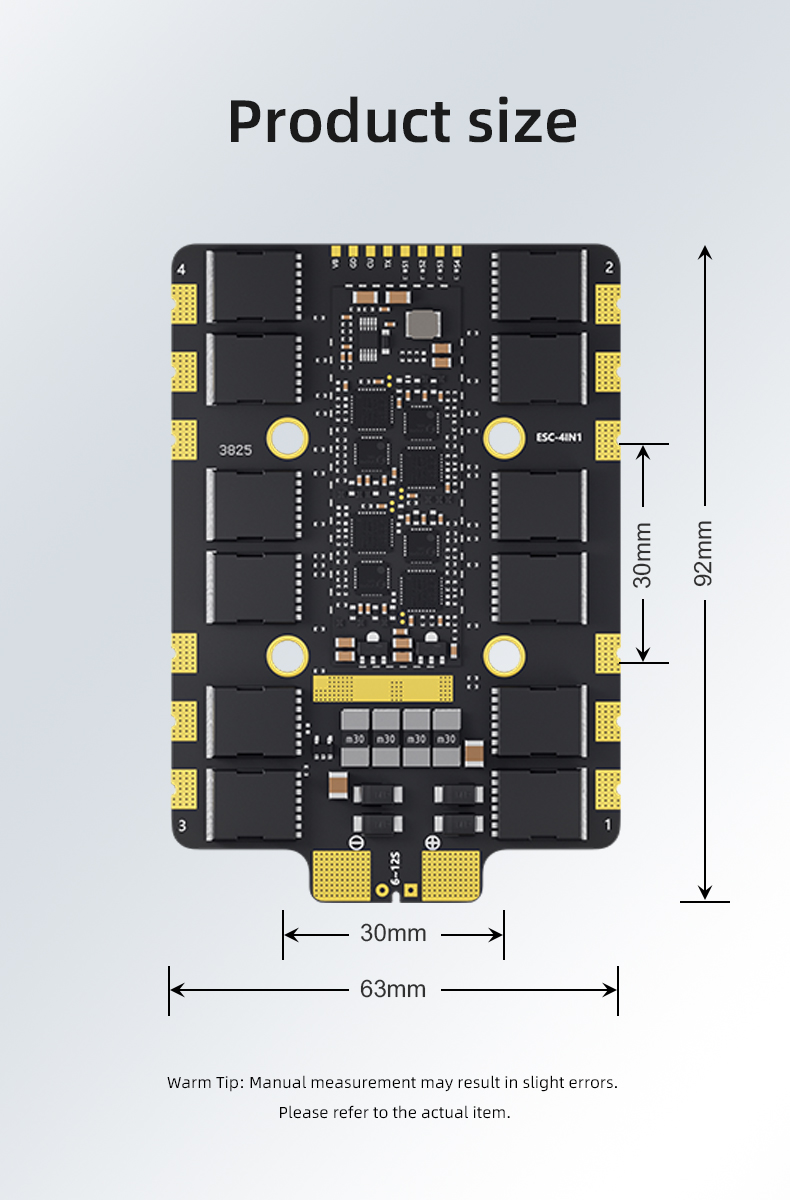

Physical

• Dimensions: 63mm*92mm
• Mounting Hole: M3, 30.5mm*30.5mm
• Weight: 72g

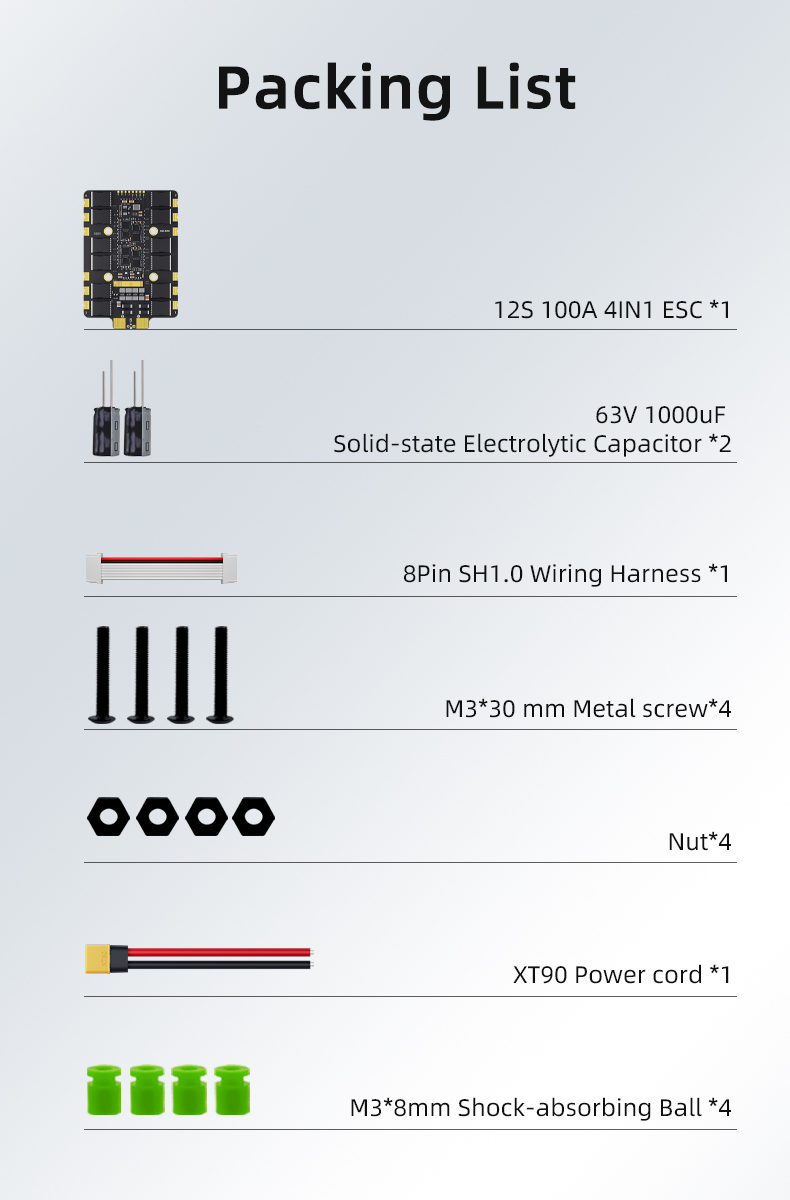

Including

• 12S 100A 4IN1  ESC*1
• 63V 1000uF Solid-state Electrolytic Capacitor *2
• 8Pin SH1.0 Wiring Harness *1
• M3*30 mm Metal screw*4
• Nut*4
• XT90 Power Lead *1
• M3*8mm Shock-absorbing Ball *4
