Aocoda-Rc 12S F405 V4.2 Flight Controller OSD Baro BalckBox for Racing Drone

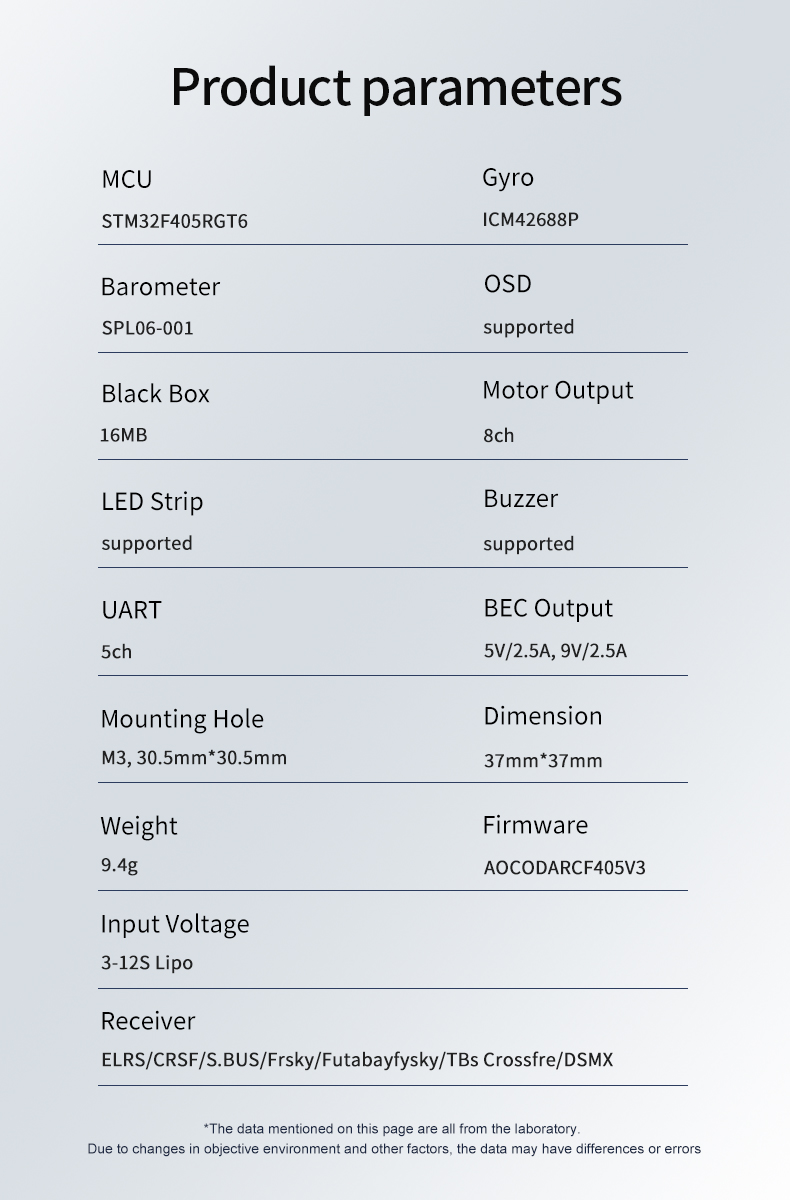

Specifications

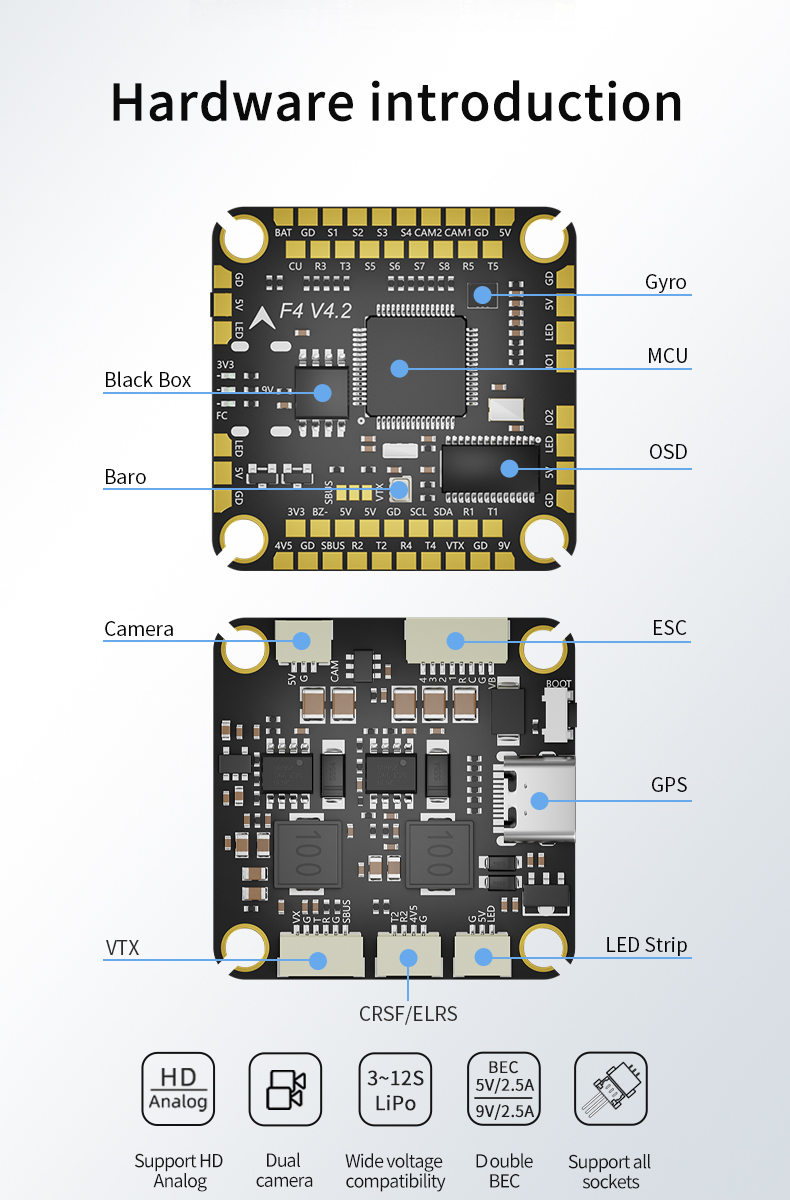

Core Hardware

• MCU：STM32F405RGT6, 168MHz, 1MB Flash
• Gyroscope：ICM42688P
• Barometer：SPL06‑001
• OSD：Supported
• Blackbox：16MB

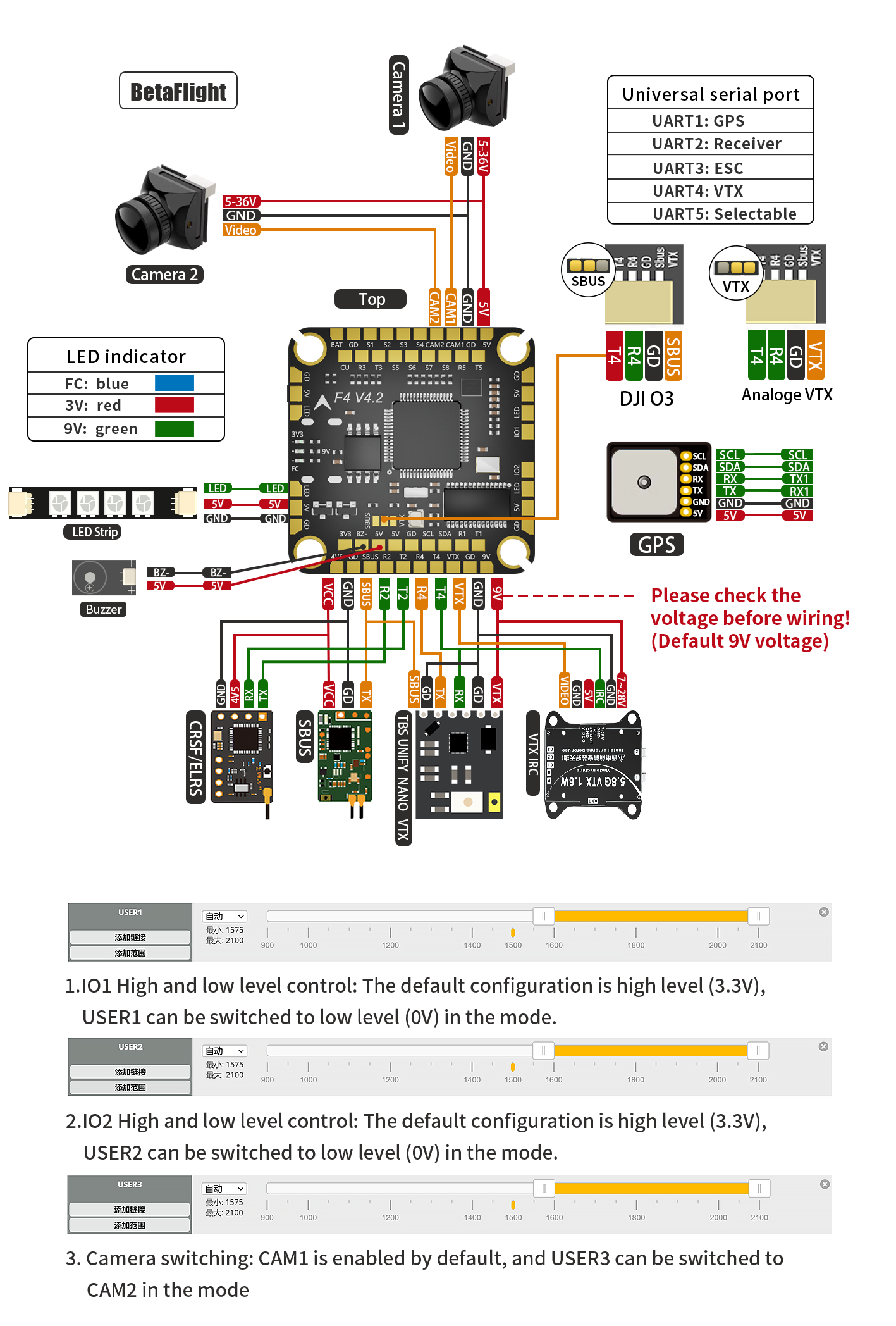

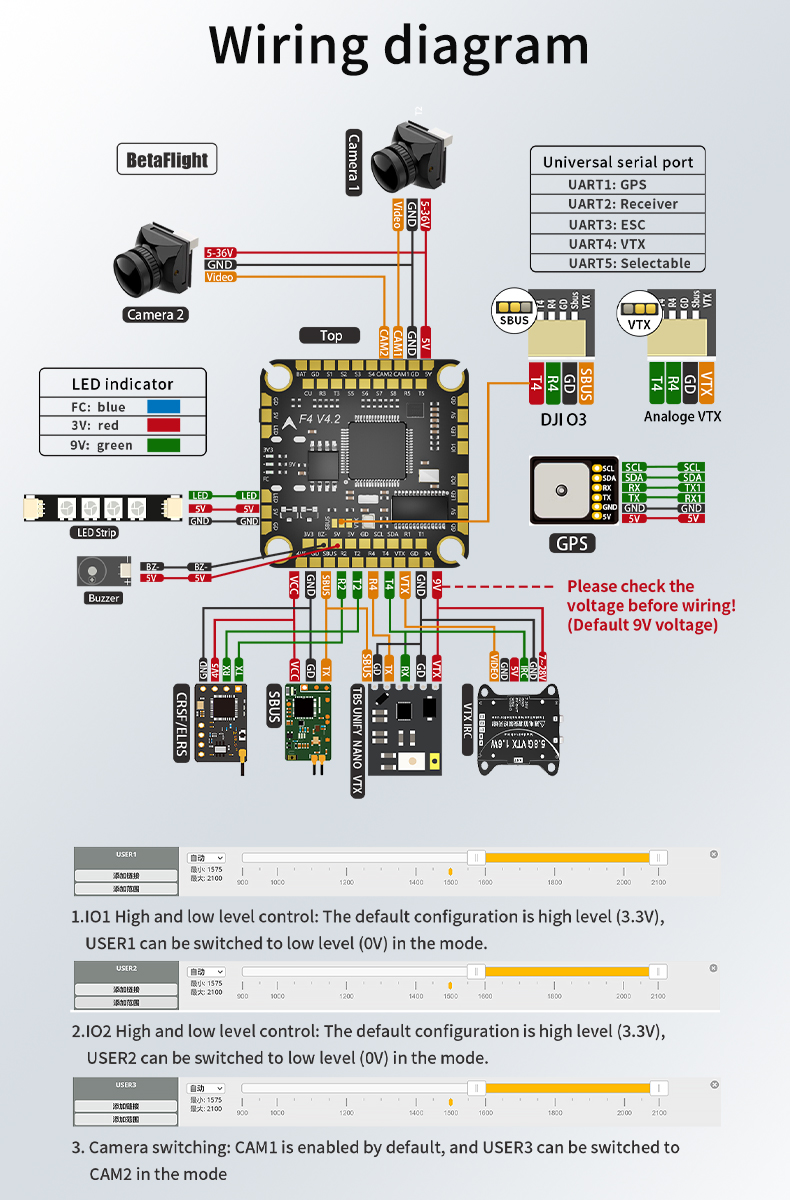

Interface & Peripherals

• UART Ports：5‑channel UART (1,2,3,4,5)
• PWM Output：12‑channel PWM output (Including LED strip pad)
• I2C Interface：1‑channel I2C
• ADC Collection：2‑channel ADC (VBAT, Current), RSSI input not supported
• USB：Type‑C USB
• 8Pin Connector：1 × JST‑SH1.0‑8P(S4, S3, S2, S1, RX, CURR, GND, VBAT)
• 6Pin Connector：1 × JST‑SH1.0‑6P (9V, GND, T4, R4, GND, VTX/SBUS)
• 4Pin Connector：1 × JST‑SH1.0‑4P (TX2, RX2, 4.5V, GND)
• 3Pin Connector：2 × JST‑SH1.0‑3P(GND, 5V, LED)(5V, GND, CAM)
• Camera：Dual camera input, switchable

Power & Features

• Motor Output：8ch
• Input Voltage：3‑12S LiPo
• BEC Output：5V/2.5A, 9V/2.5A
• LED FC: Blue, Flight controller status indicator
• LED 3V3: Red, 3.3V power indicator
• LED 9V: Green, 9V power output indicator
• Buzzer：Supported
• LED Strip：Supported
• Firmware：BetaFlight / INAV, Target: AOCODARCF405V3
• Receiver Protocol：ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX

Physical Specs

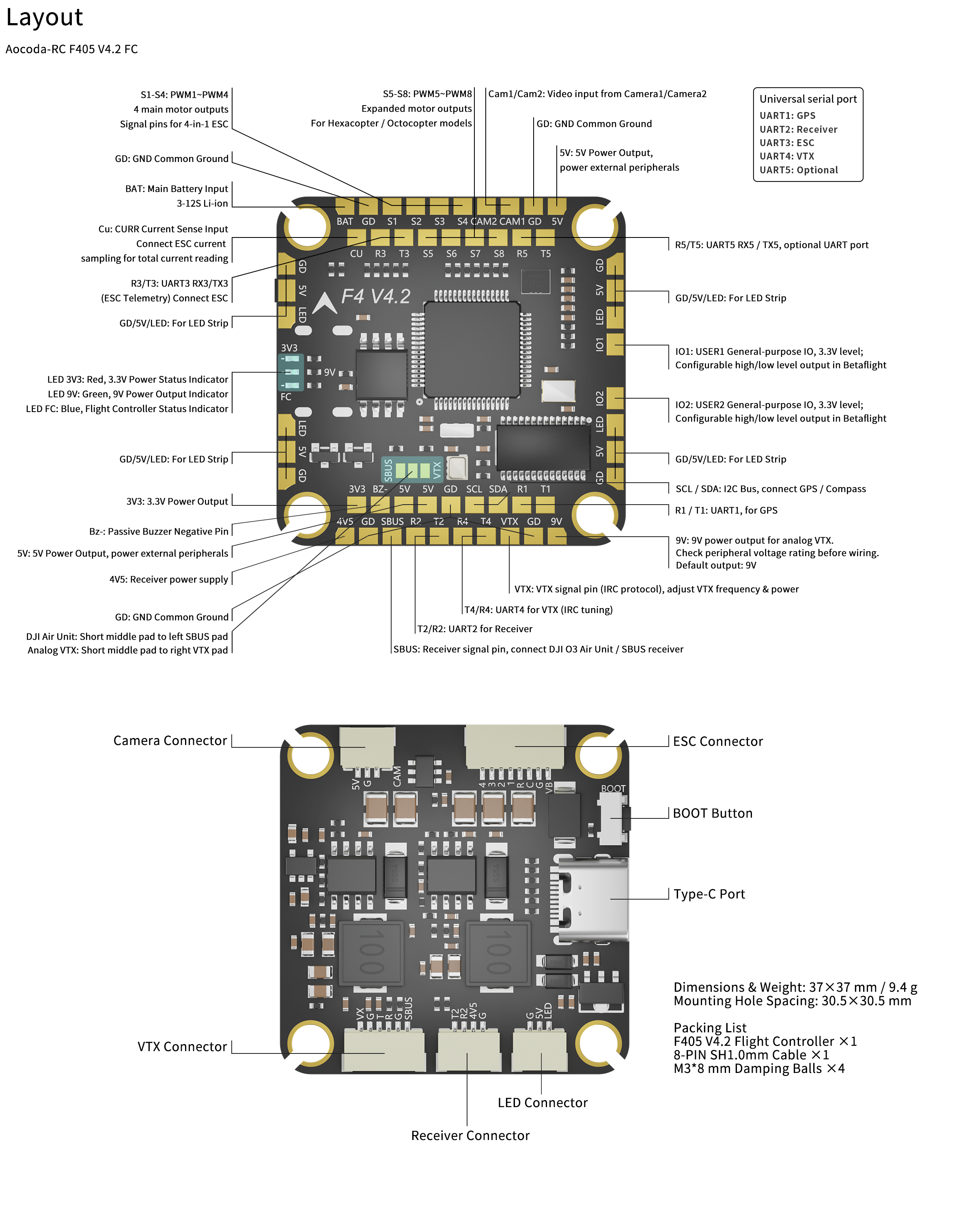

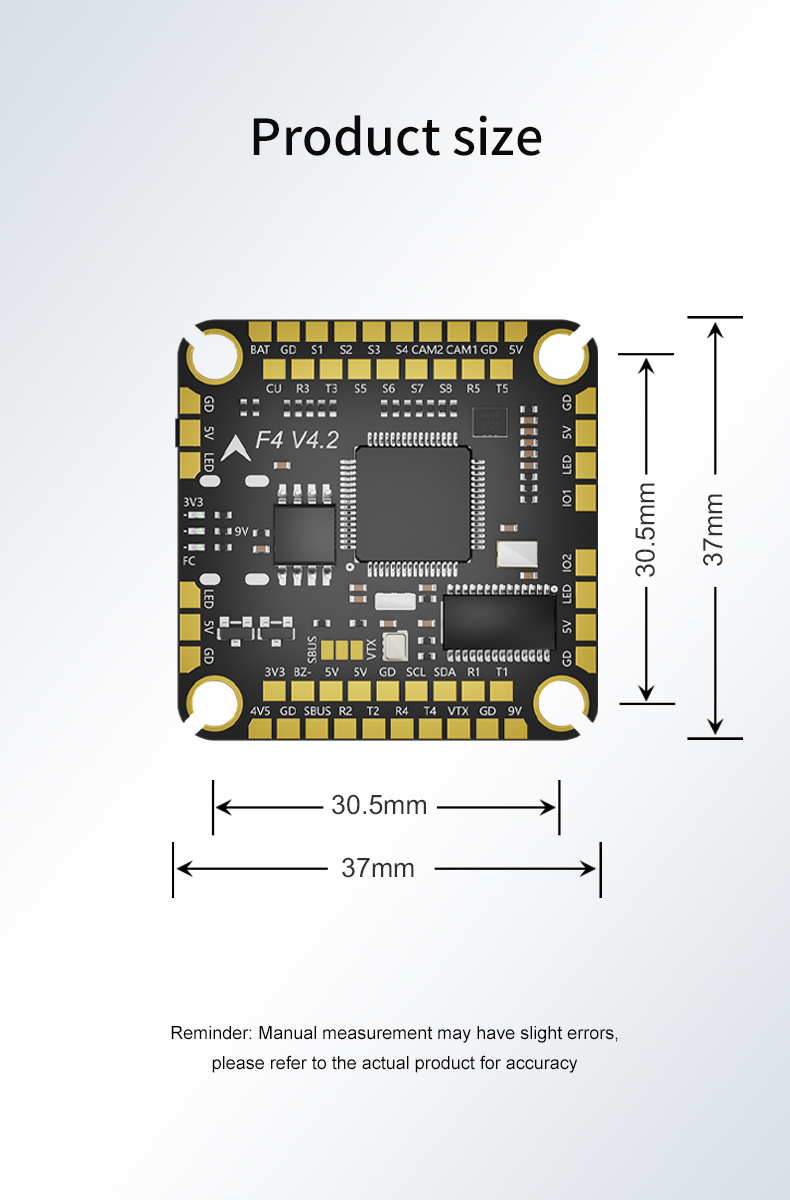

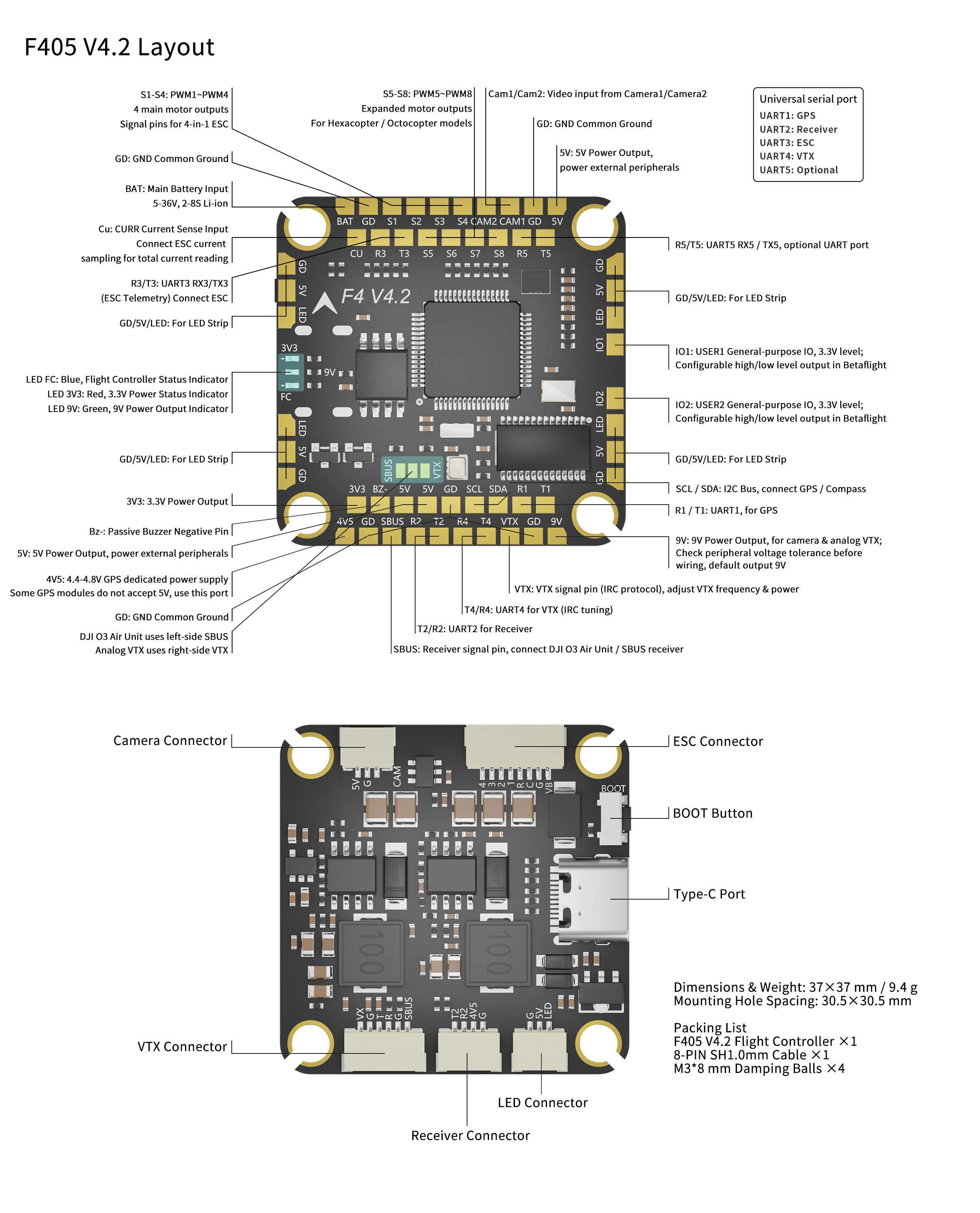

• Mounting Hole：M3, 30.5mm*30.5mm
• Dimension：37mm*37mm
• Weight：9.4g

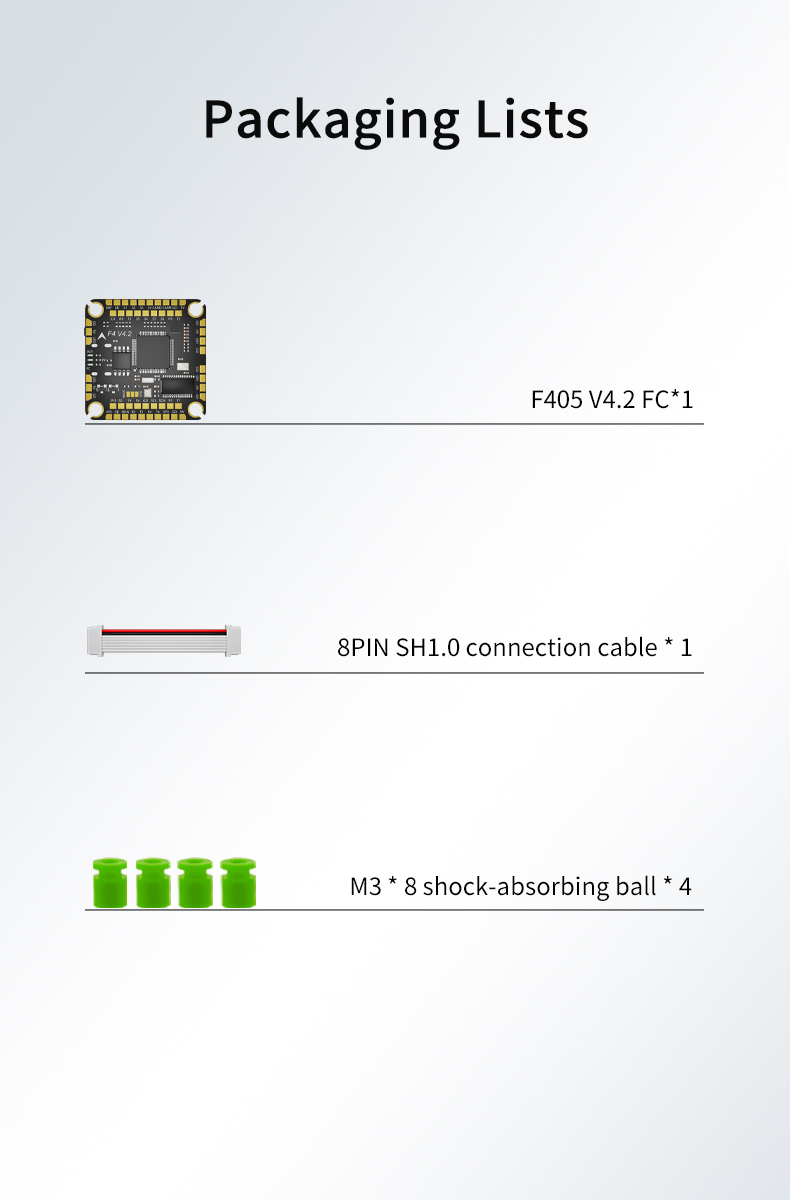

Including

• F405 V4.2 FC*1
• 8PIN SH1.0mm connection cable*1
• M3 *8 shock-absorbing ball *4
