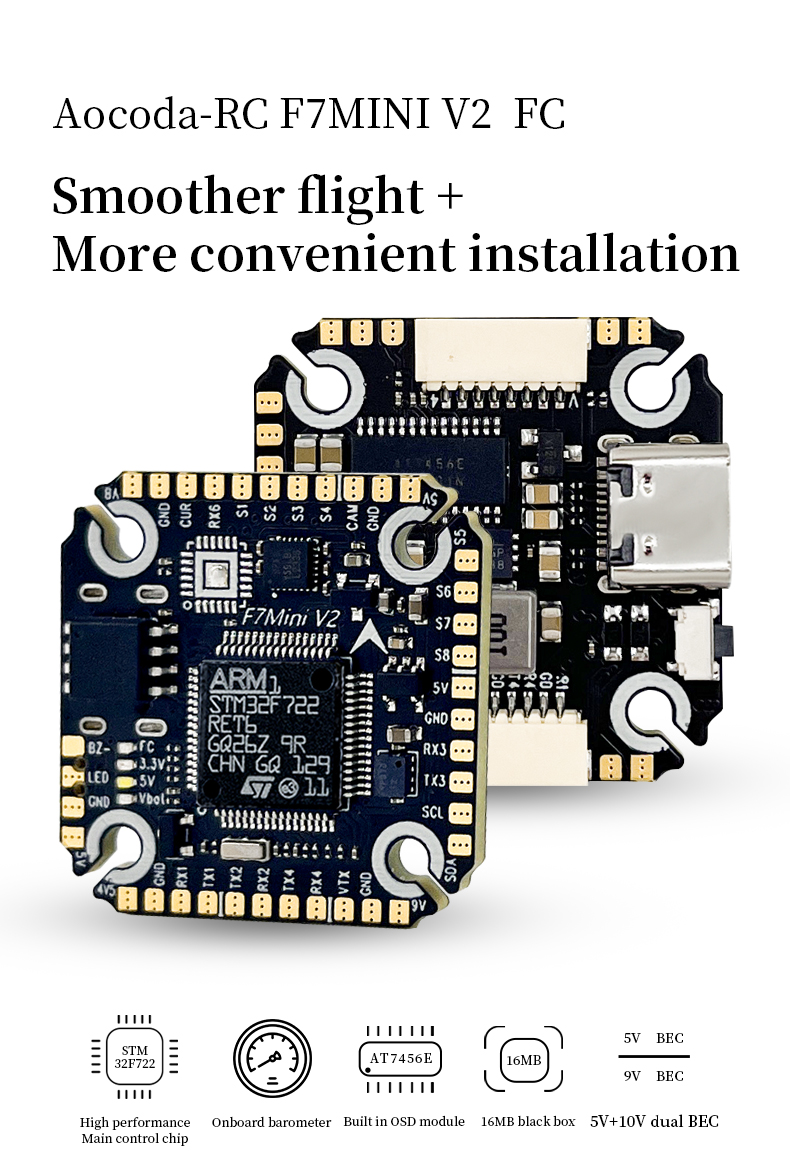

Aocoda-RC F722MINI V2

MCU: STM32F722RET6

IMU: MPU6500/MPU6000(Optional)

Baro: BMP280

OSD: AT7456E

BlackBox:  16M Flash on Board

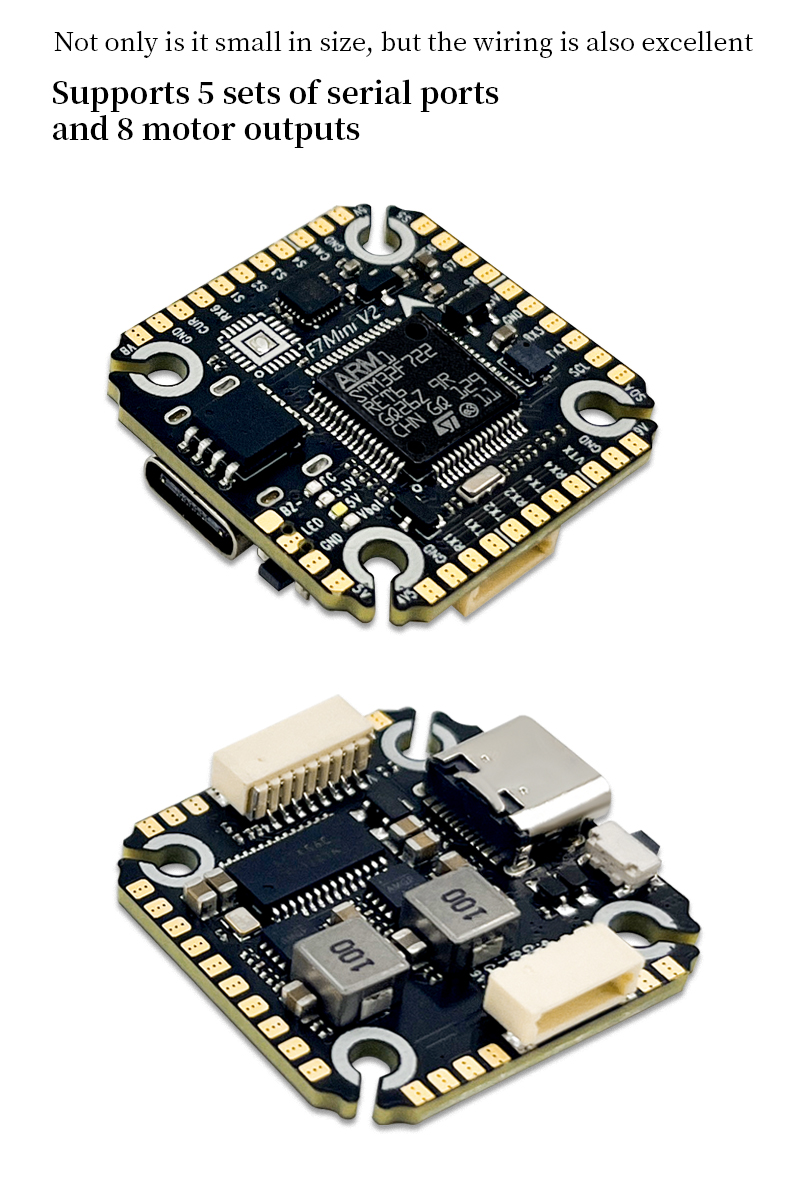

Uart：5ch

Motor PWM：8ch

LED Trip:Support

Buzzer:Support

Input Voltage: 3-6S Lipo

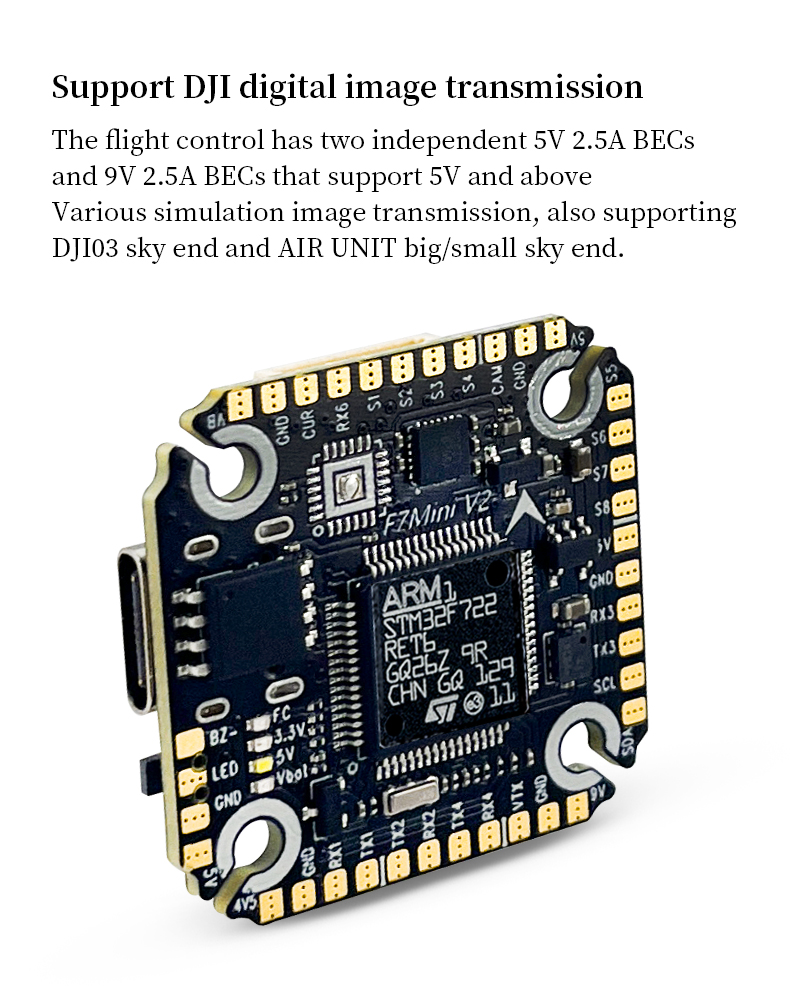

BEC:5V/2.5A, 9V/3A

Weight:6.8g

Size: 28x28mm

Mounting Hole:20mm

Firmware: AOCODAF722MINI V2
