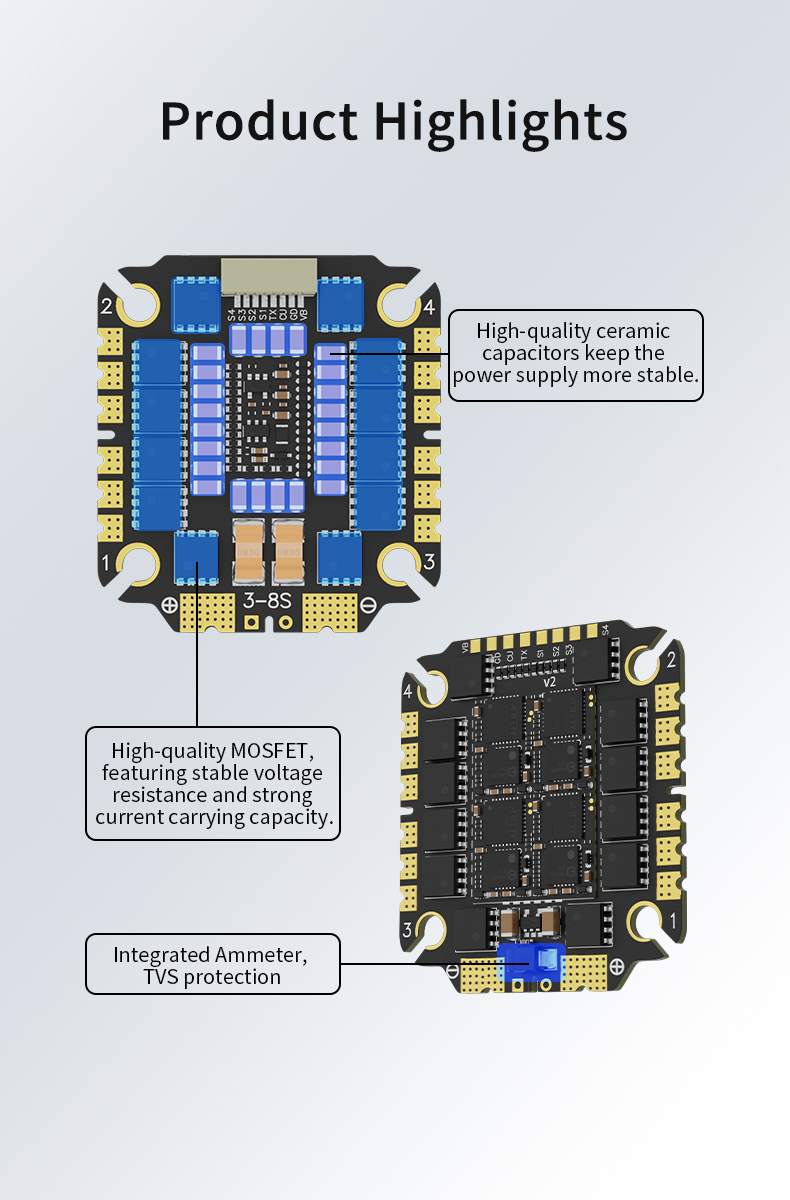

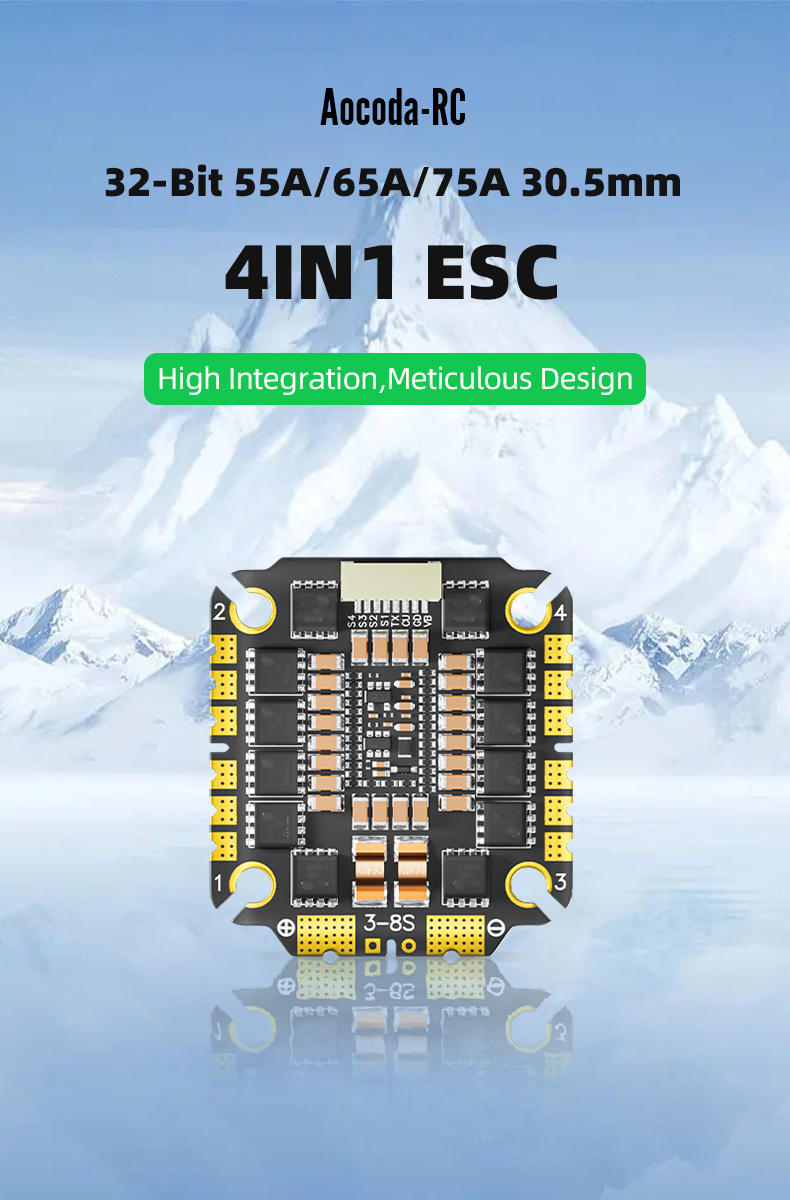

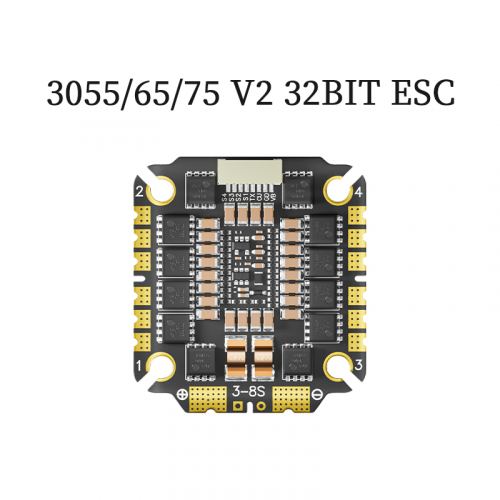

Aocoda-RC 3055/3065/3075 AM32 32Bit 55A/65A/75A 4-IN-1 ESC

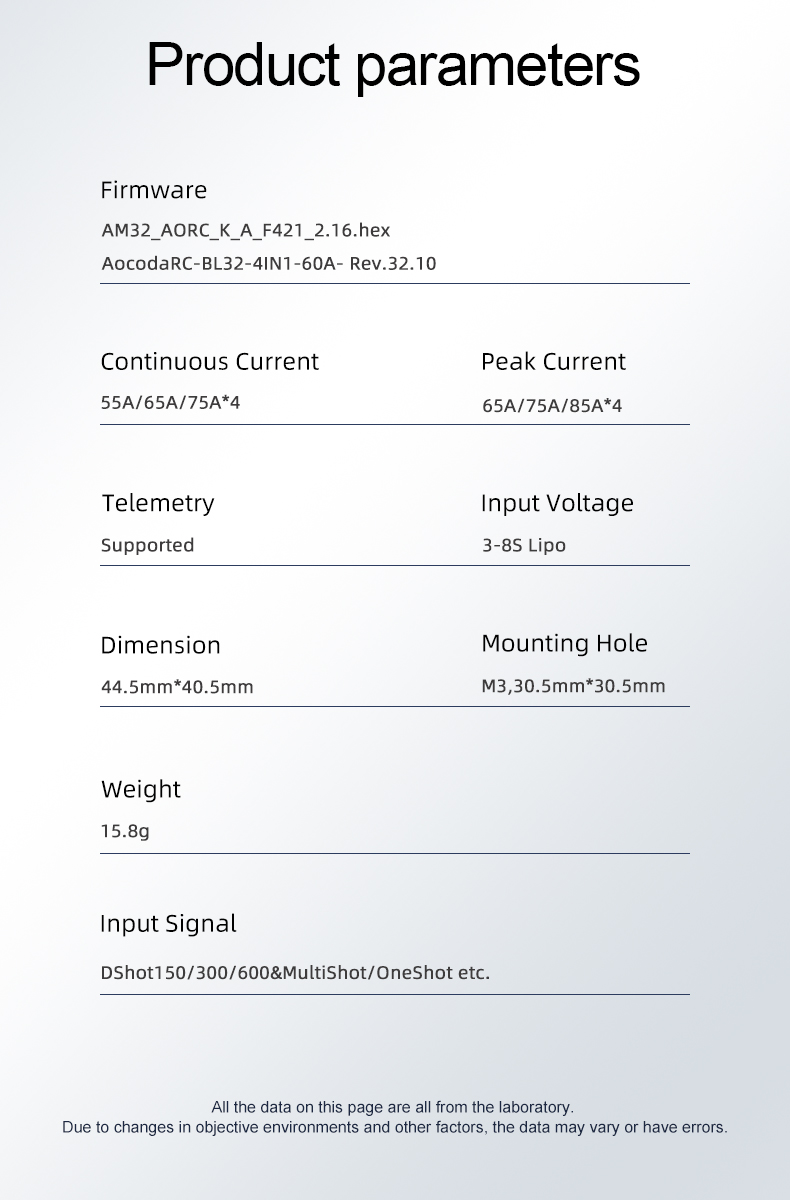

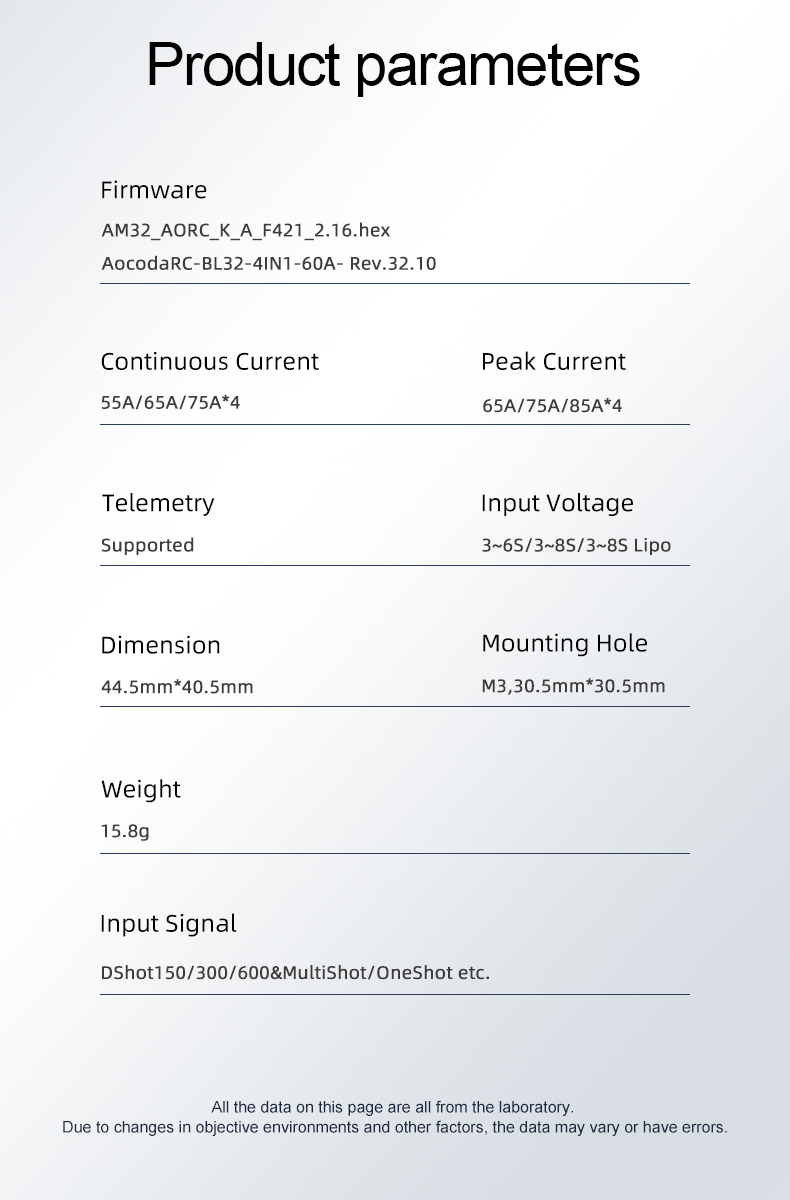

Specifications

• Continuous Current: 55A/65A/75A*4
• Peak Current: 65A/75A/85A*4
• Peak Power Rating (kW):
• Continuous Rating Duration (s):
• Burst Rating Time (s):
• Input Voltage: 3-6S/3-8S/3-8S Lipo
• BEC output: No
• Temperature:No
• Telemetry:
• Current Scaling:
• Working Temperature:
• Working Humidity:
• Storage Temperature:

Features

• Firmware: AM32_AORC_K_A_F421_2.16.hex or AocodaRC-BL32-4IN1-60A-Rev.32.10
• ESC Programming:
• Web Parameter Adjustment:
• DEO:
• Timing:
• Motor Rotation:
• Driving Frequency Setting:

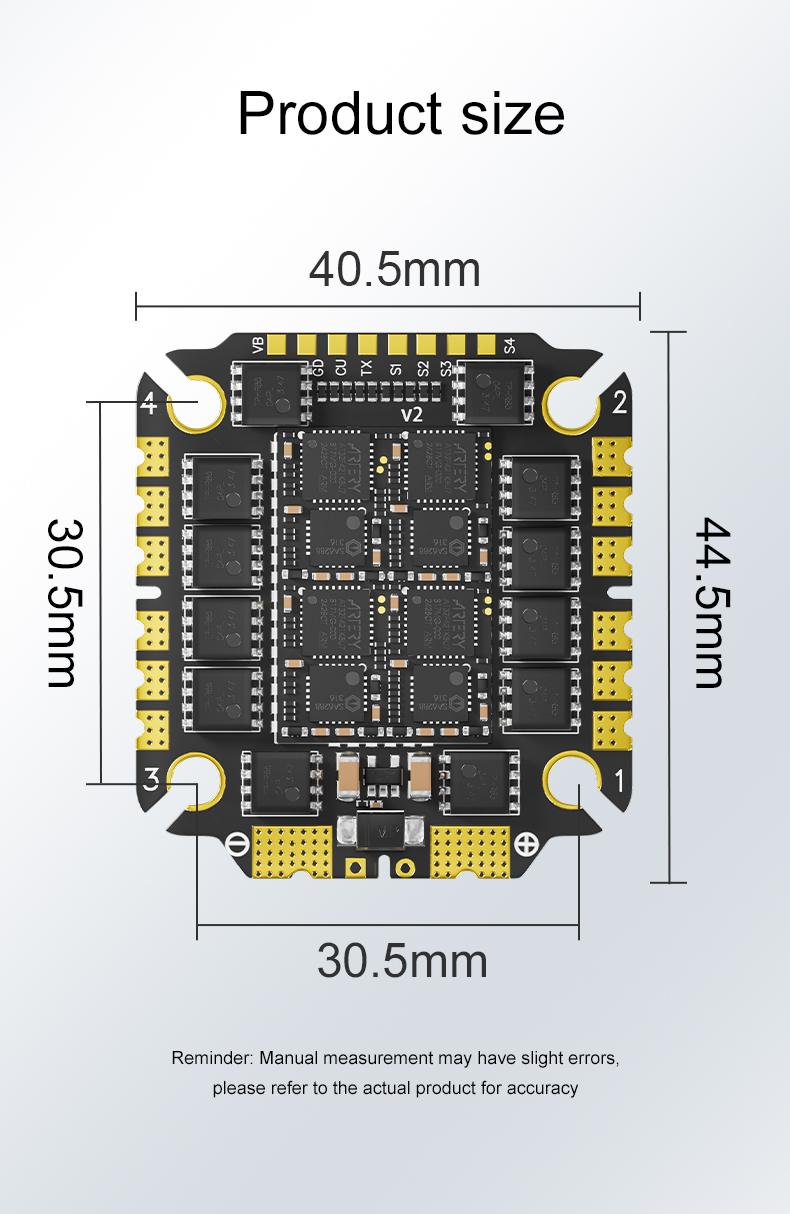

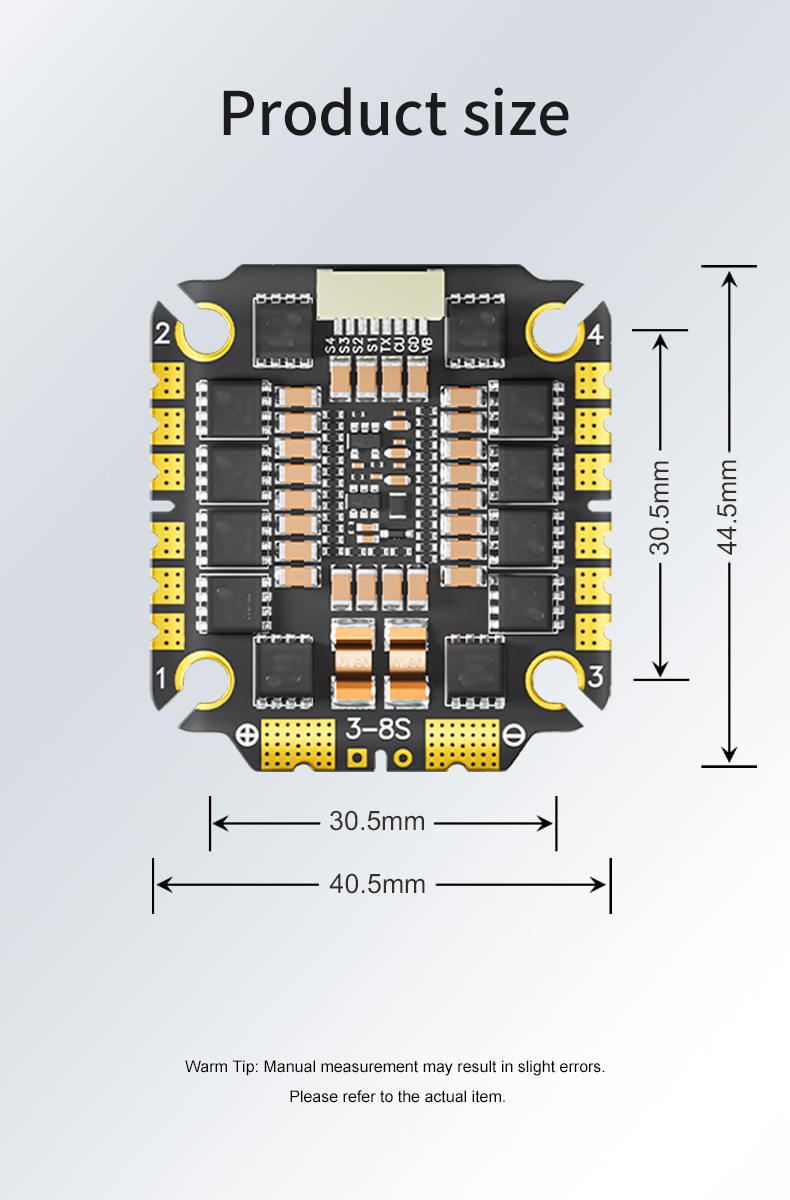

Physical

• Dimensions: 44.5mm*40.5mm
• Mounting Hole: M3,30.5mm*30.5mm
• Weight: 15.8g

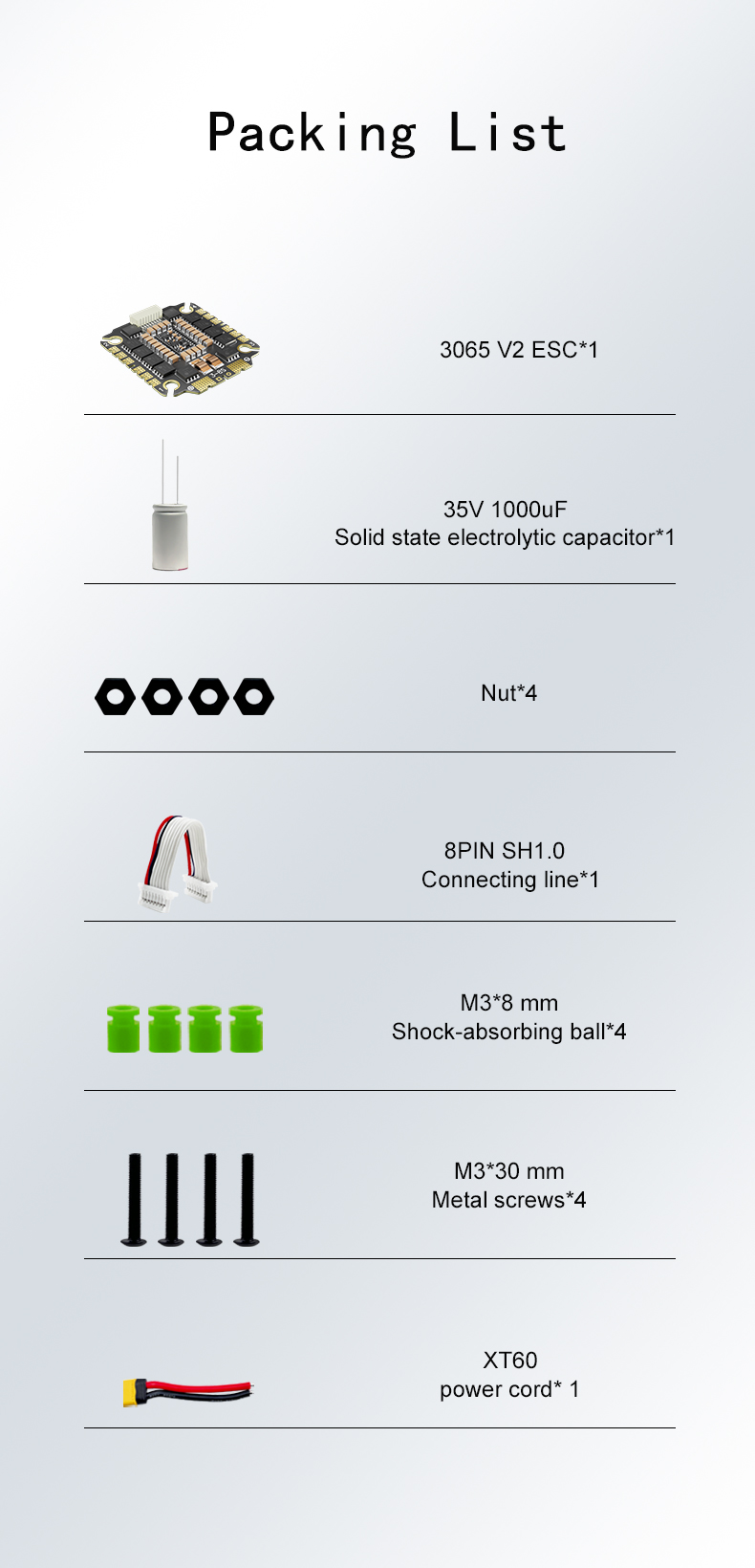

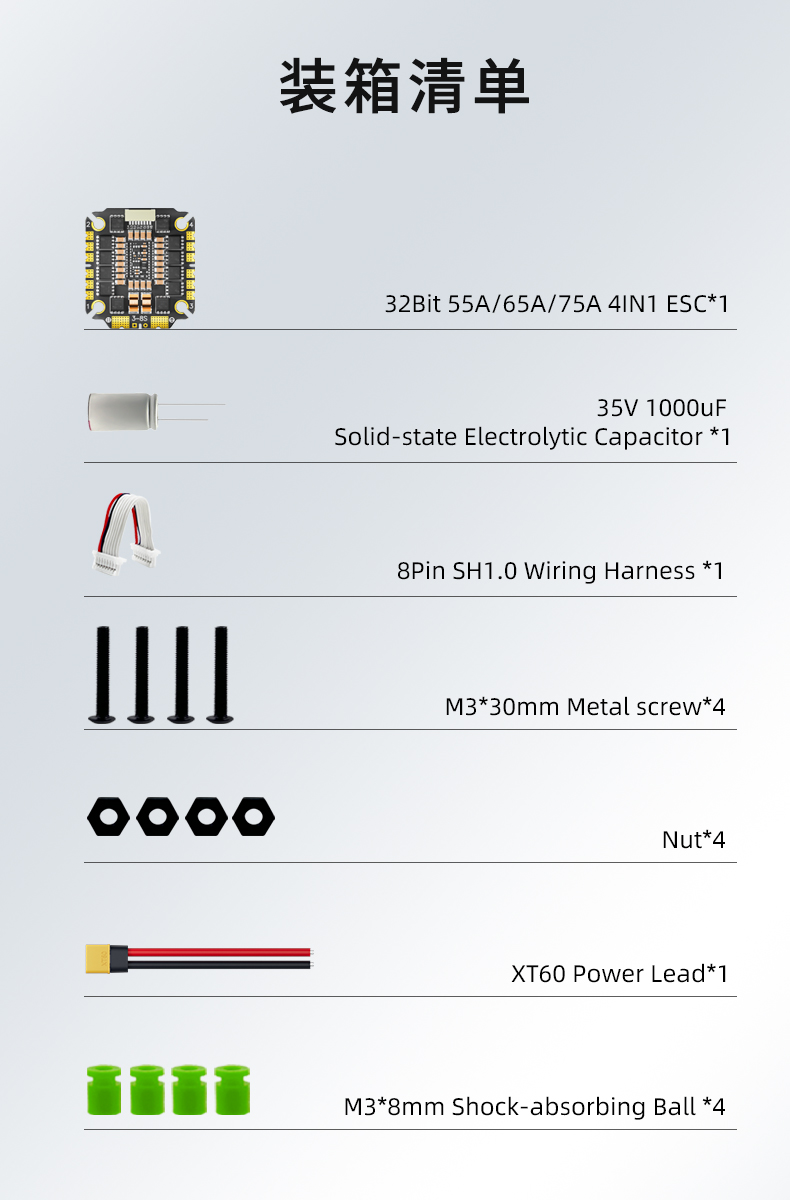

Including

• 32Bit 55A/65A/75A 4IN1 ESC*1
• 35V 1000uF Solid-state Electrolytic Capacitor*1
• 8Pin SH1.0 Wiring Harness*1
• M3*30mm Metal screw*4
• Nut*4
• XT60 Power Lead*1
• M3*8mm Shock-absorbing Ball*4

Regarding technical issues

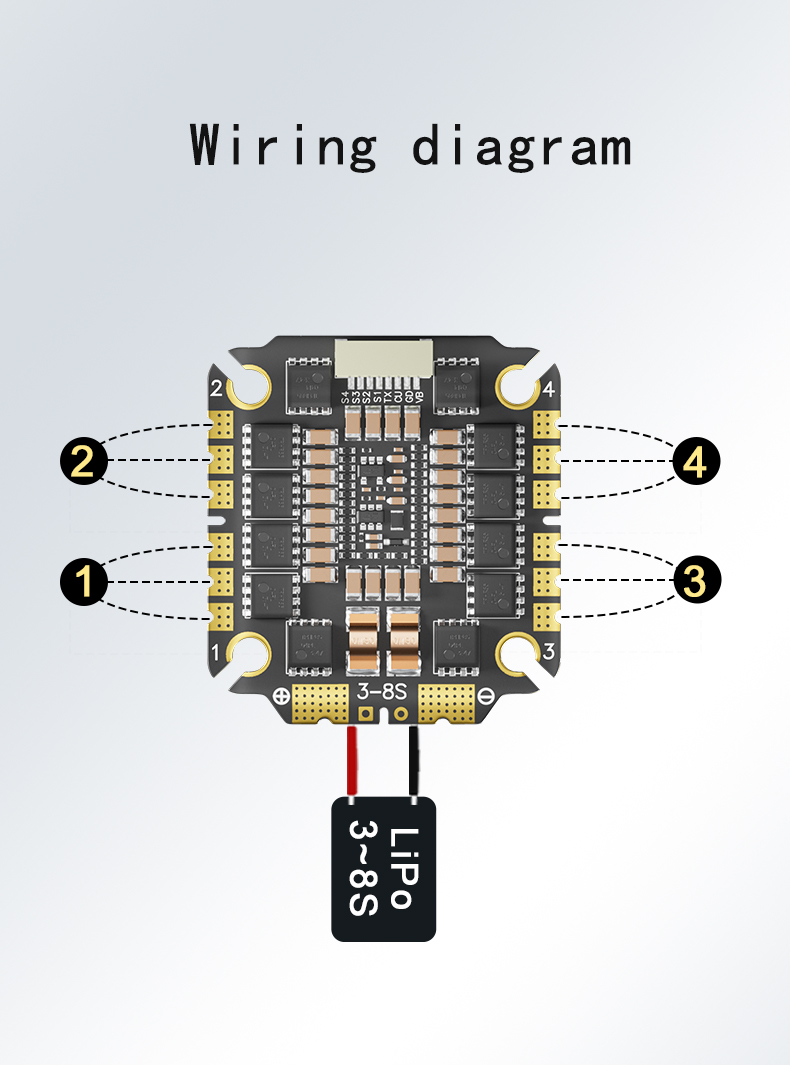

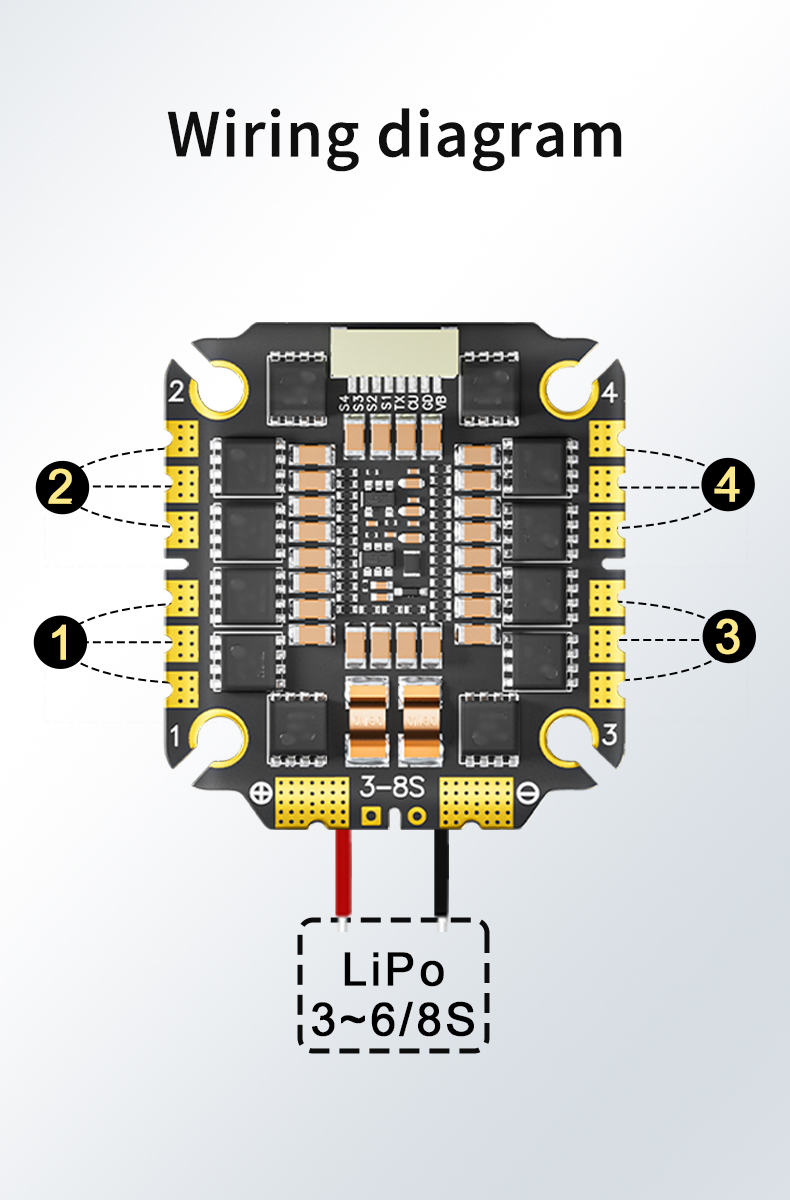

Product Manual (including Layout、Wiring diagram and Purchase channels)
